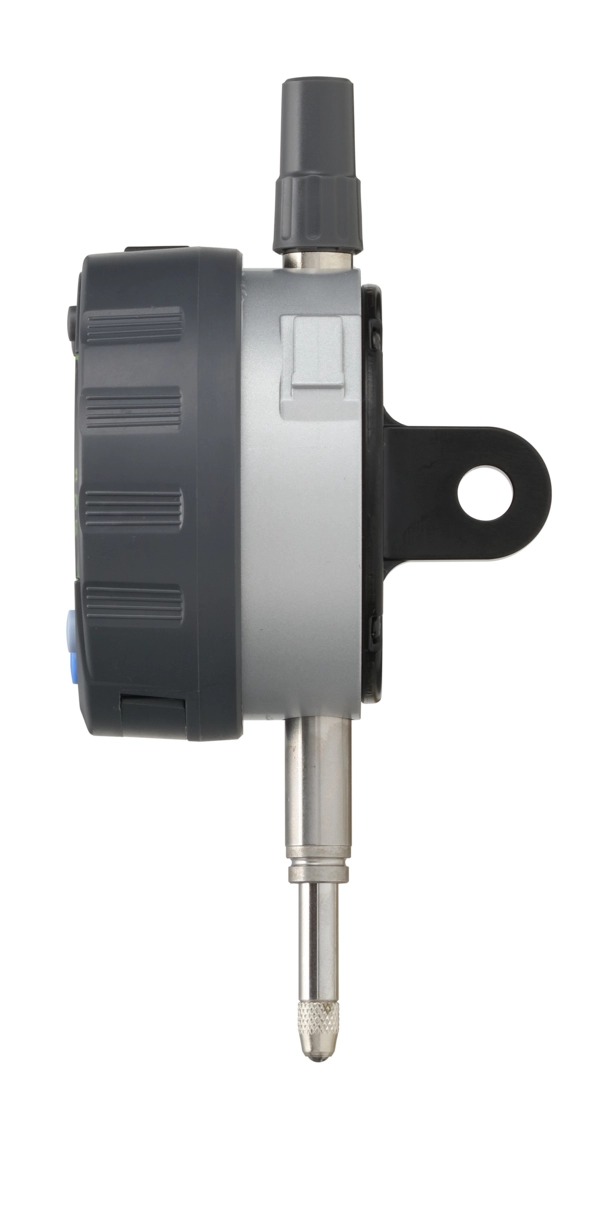

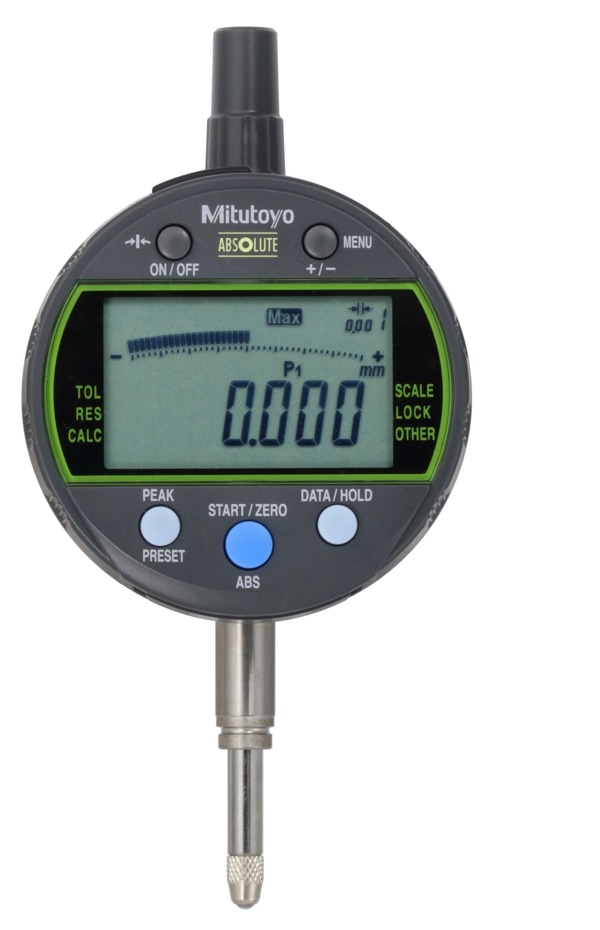

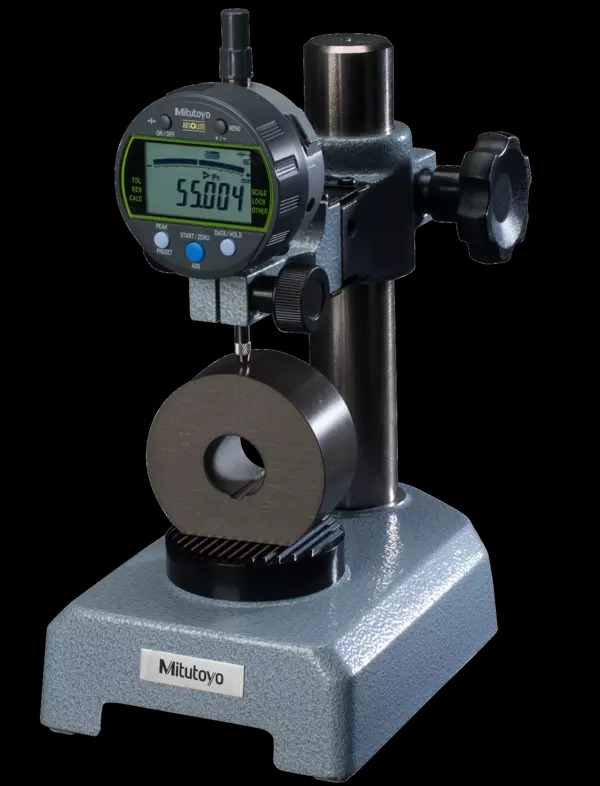

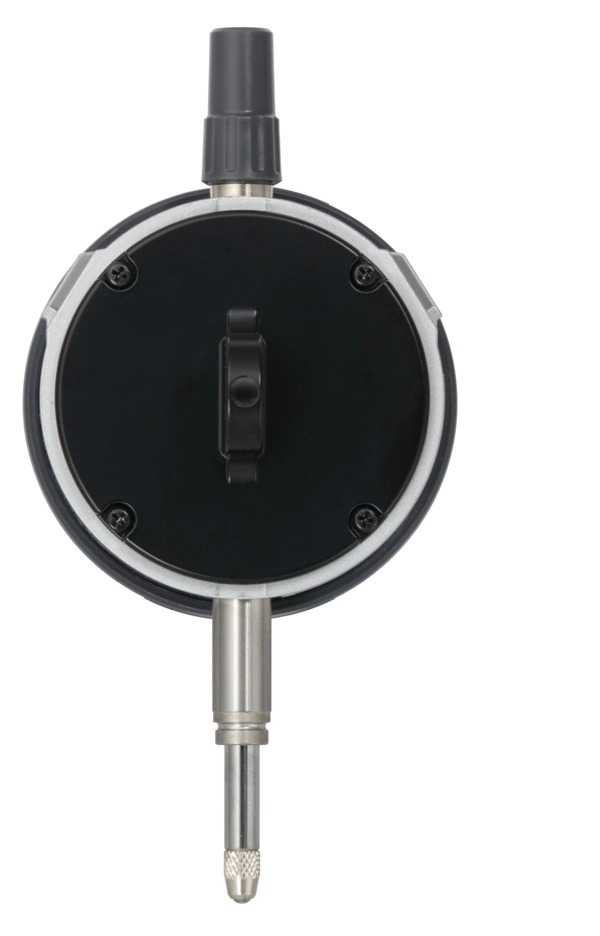

Mitutoyo DIGIMATIC INDICATOR 543-300-10

Digital/Analog: Digital
Inch-Metric: Metric
Delivered: Including CR2032 battery, certificate of inspection
Range: 12.7 mm
Digital step: 0.001 mm/0.01 mm
Max. Permissible Error E MPE (Total Range): 0.003 mm
H MPE (Hysteresis): 0.002 mm
R MPE (Repeatability): 0.002 mm
Measuring force MPL: ≤1.5 N
Protection: IP42
Type: EN ISO Standard
Mass: 180 g
Display: LCD, character height 8 mm, 330° rotatable
Max. response speed: Unlimited
Measurement frequency (MAX/MIN/RANGE): Standard mode: 10 times/s; fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement)
Alarm: Low voltage, ABS composition error, overflow error, setting error
Stem ∅: 8 mm
Contact point: Carbide ball, thread: M2.5×0.45
Power supply: 1 battery CR2032
Battery life: Standard mode: approx. 1 year; fast mode: approx. 4.5 months
DATA/HOLD: Yes
PRESET 3x: Yes
Digimatic data output: Yes
ON/OFF: Yes
Analog bar resolution switchable: Yes
Function lock: Yes
GO/±NG judgement: Yes
Fast measurement mode: Yes
ABS / INC (INC ZERO): Yes
Calculation function (with formula): Yes
Counting direction switchable: Yes
Inch/Metric switchable: No
Digital Scale: Electrostatic capacitance type absolute linear encoder
