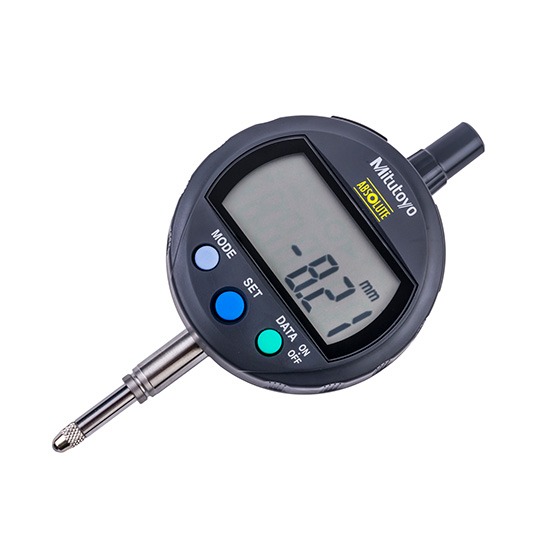

Mitutoyo Digimatic Indicator 543-404

Product Code: 543-404

$513.48$466.80 Ex. GST

Product Code: 543-404 SKU 543-404 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Display: LCD, length standard: absolute electrostatic capacitance type linear encoder, max. Response speed: unlimited, measuring force: refer to the list of specifications, battery: sr44 (1 pc.), 938882, battery life: approx. 5,000 Hours under normal use, dust/water protection level: ip42 or ip53 (dust-proof type) origin-set/preset, zeroset, go/+/-ng judgment, counting direction switching, power on/off, data output, inch/mm conversion (on inch/metric models only).

Additional information

Weight 0.0000 kg
Dimensions Length 19.3cm x Width 10.67cm x Depth 7.62cm
barcode
Additional Information

Model: ID-C1012CX
Accuracy: 0.02 mm
Range: 12.7 mm
Resolution: 0.01 mm
Display Type: LCD
Max Response Speed: Unlimited
Measuring Force: 0.2 N – 0.5 N
Battery: SR44 (1 pc.)
Stem Diameter: 8 mm
Stem Thread: M2.5 x 0.45
Back Type: Lug Back
Functions: Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output
Optional Accessories: Lifting Lever, Lifting Cable, Lifting Knob, SPC cable

Brand

Mitutoyo
