$546.90$497.18 Ex. GST

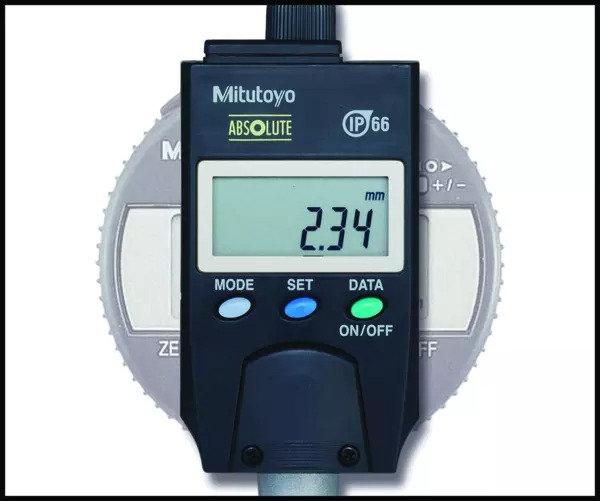

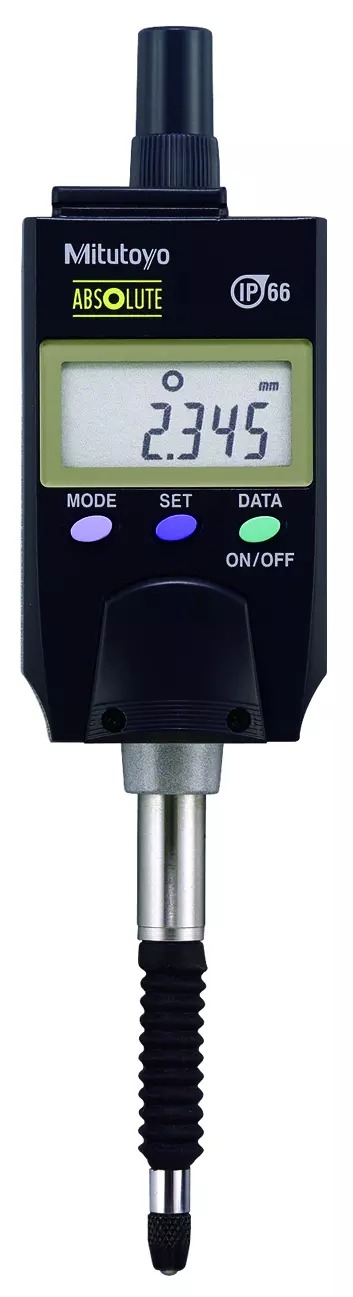

The Mitutoyo ABSOLUTE Digimatic ID-N series indicator is ideal for accurately measuring short, linear distances in tight spaces and harsh workshop conditions. Measurements are shown on a rotatable LCD display. The Mitutoyo ABS ID-N Series digital indicator features a slim body that rotates up to 180 degrees for taking measurements from different directions. The 35mm-wide body provides measurements in tight, restricted spaces where standard gage graduations are difficult to read. The ID-N indicator measures linear distances up to 5mm (metric only) or 12.7mm/.5” (Inch/Metric model), and some models have a selectable resolution and accuracy of up to +/- .00012″/.003mm.
Features:
Available in Metric and Inch/Metric models
Available with SPC output capabilities
Signal can be outputted to an external device; waterproof data output connector protects against dust, water and oil ingress
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
SPC output function allows for quick and easy data management in real time
Functions include: Zero-setting, presetting, direction switching, tolerance judgment, display hold, data output, resolution switching, and inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
Unlimited response speed eliminates over-speed errors
Sealed housing meets IP66 rating for improved protection against water, dust, oil and water jets
Supplied in a fitted plastic case
| Weight | 0.1400 kg |
|---|---|
| Dimensions | Length 19.99cm x Width 15.01cm x Depth 5.99cm |
| barcode | |
| Additional Information | The Mitutoyo 543-575 ABSOLUTE Digimatic Indicator ID-N Slim Type with Dust/Water Protection Conforming to IP66 has the following specifications: Range: 0-5mm |
