Mitutoyo DIGIMATIC INDICATOR 543-585

Description

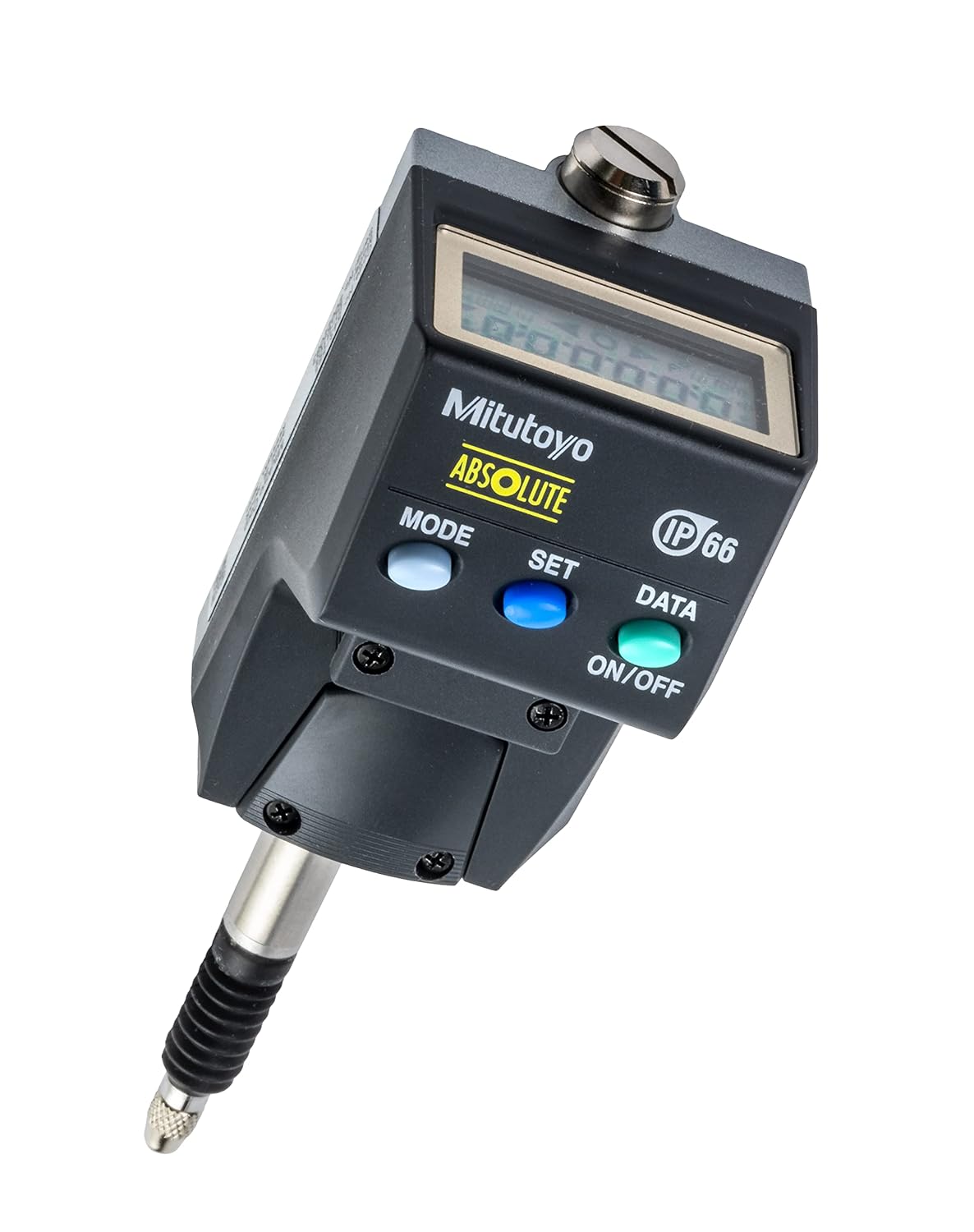

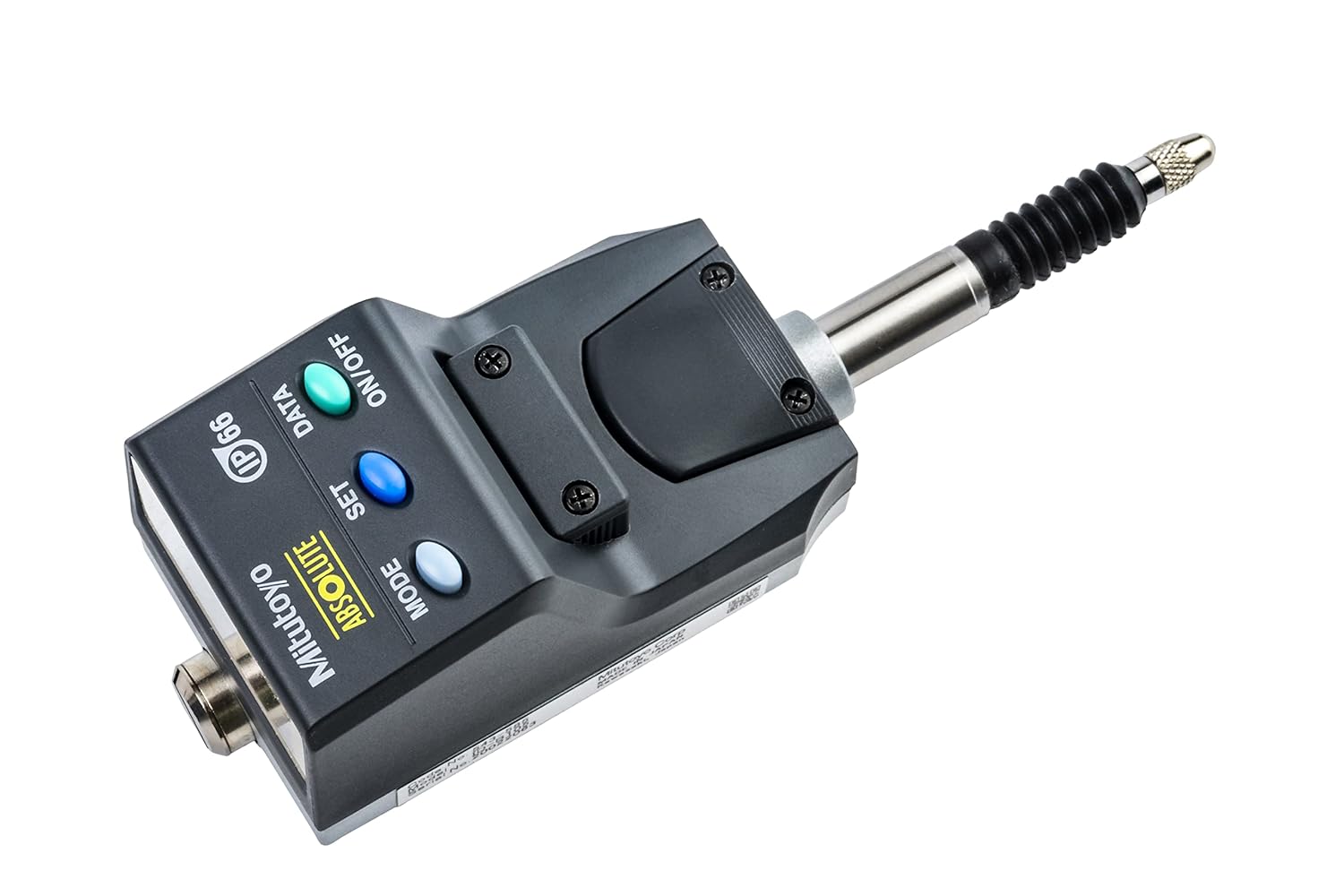

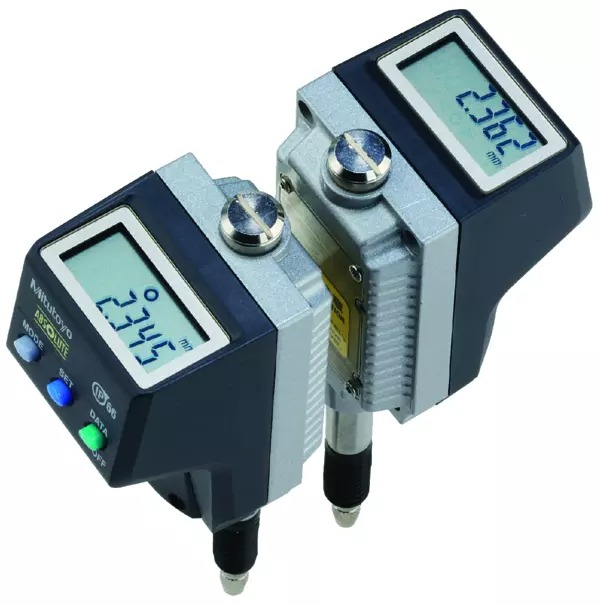

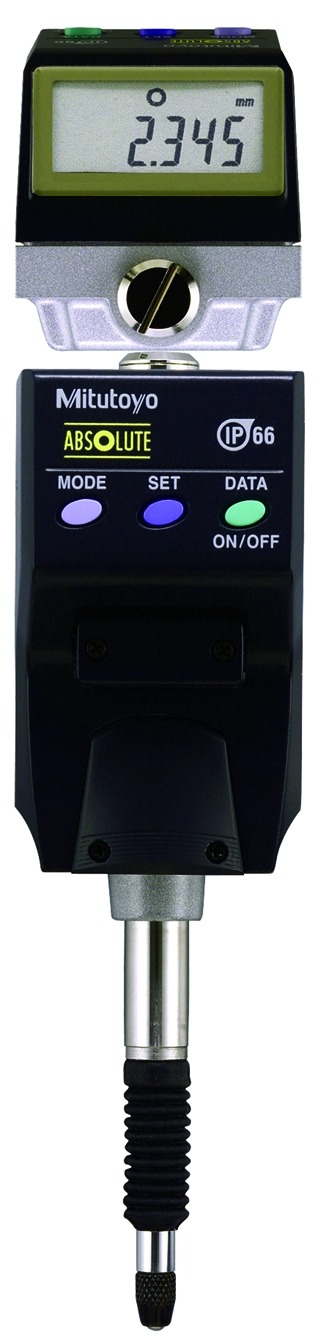

The Mitutoyo ABSOLUTE Digimatic ID-B series indicator offers a rotatable, mountable back-plunger style body and is ideal for measuring in harsh workshop conditions. Measurements are shown on a rotatable LCD display. The Mitutoyo ABS ID-B Series digital indicator features a back-plunger style body that rotates up to 180 degrees for taking measurements from different directions. The body mounts to a leveling machine tool table or inspection jigs and its slim design allows for use in restricted spaces where graduations of standard gages are difficult to read. The ID-B indicator measures linear distances up to 5mm (metric only) or 5.6mm/.22” (Inch/Metric models), and some models a selectable resolution with accuracy of up to +/- .00012″/.003mm.

Features:

Available in Metric and Inch/Metric models
Available with SPC output capabilities
Signal can be outputted to an external device; waterproof data output connector protects against dust, water and oil ingress
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
SPC output function allows for quick and easy data management in real time
Functions include: Zero-setting, presetting, direction switching, tolerance judgment, display hold, data output, resolution switching, and inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
Unlimited response speed eliminates over-speed errors
Sealed housing meets IP66 rating for improved protection against water, dust, oil and water jets
Supplied in a fitted plastic case
