Mitutoyo DIGIMATIC INDICATOR 543-700

Description

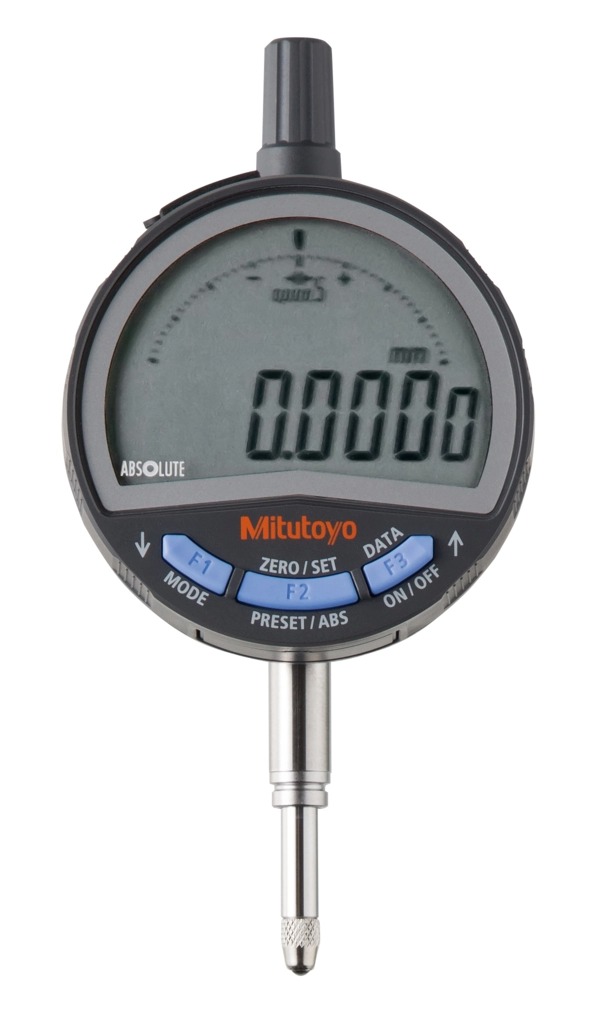

The Mitutoyo 543-700 Standard ID-C Absolute Digimatic Indicator has the following specifications:

Range: 0-12.7mm
Resolution: 0.0005/0.001/0.01mm
Maximum Permissible Error: 0.003mm
Hysteresis Maximum Permissible Error: 0.002mm
Repeatability Maximum Permissible Error: 0.002mm
Measuring Force: 1.5 or less
Interface: d1/d2/S1
Net Mass (g): 175
Flat Back Mass (g): 165
Features:

Display 7 segments height: 11.0 mm, Analog bar (±20 scale)

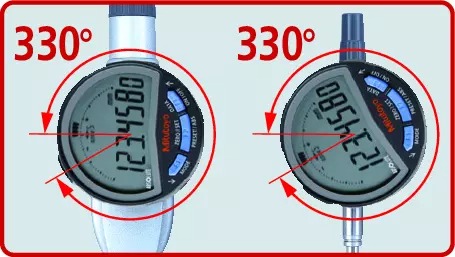

Display rotation 330 °
Protection level*2 Equivalent to IP-42
Possible plunger direction All directions 0.0005 mm models: Plunger downward only
0.01 mm models: Up to direction in which plunger is horizontal Up to direction in which plunger is horizontal
Power supply Lithium metal battery CR2032 (1pc.)
Battery life*3 Approx. 2.5 years (normal use), Approx. 2,700 hours(continuous use)
Detection method Electrostatic capacitance type absolute linear encoder
Response speed No limit
Errors, Alarms Various setting errors, Sensor error, Display overflow, etc.
Operating temperature 0 to 40 °C
Storage temperature -10 to 60 °C

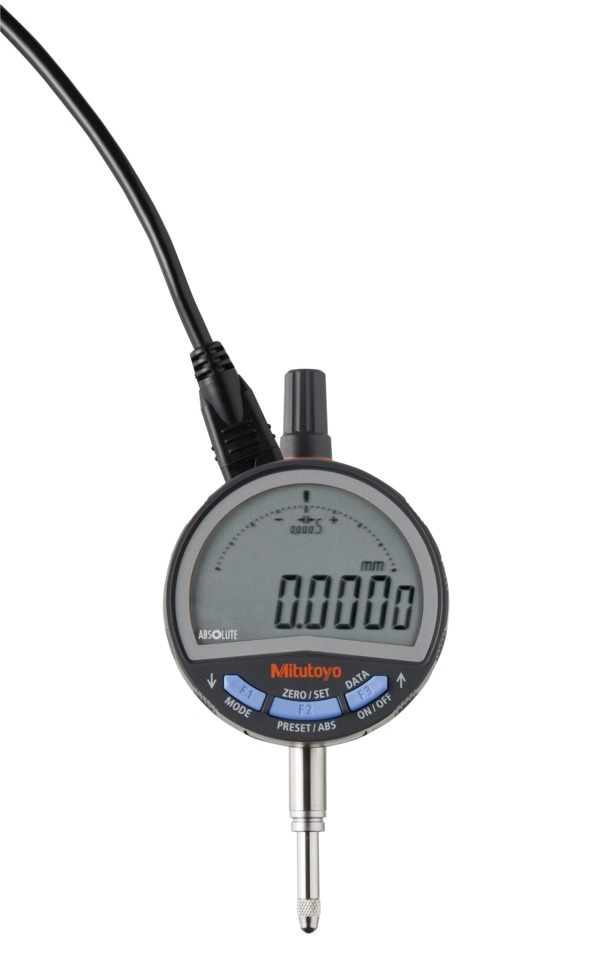

The ID-C/ID-F are the new generation ID series from Mitutoyo. They make measurement operations smoother and enhance production quality. This new line of indicators includes bidirectional serial communication that helps increase work efficiency. The indicator can be easily connected and linked with a PC via a USB input tool, etc., and in addition to conventional measurement data collection, they also enable control and setting of the ID-C/ID-F units, collection of gage information, and other operations to be performed in batch from the PC.

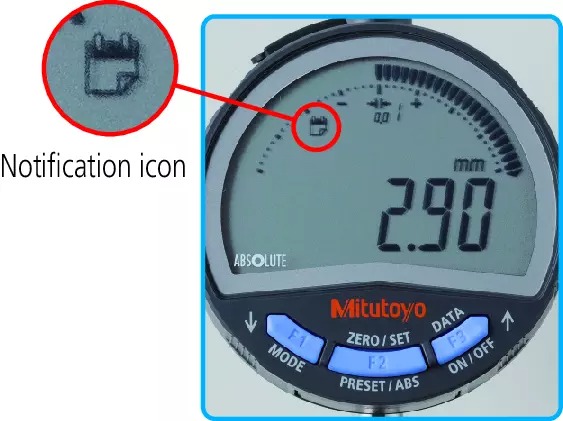

This new generation ID series includes a calibration period notification function. Avoid missing a pending calibration. The LCD displays an icon to notify the user when the set calibration time approaches. This facilitates the proper precision management of ID-C/ID-F.
