Mitutoyo DIGIMATIC INDICATOR 543-782

Product Code: 543-782

$229.71$208.83 Ex. GST

Product Code: 543-782 SKU 543-782 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

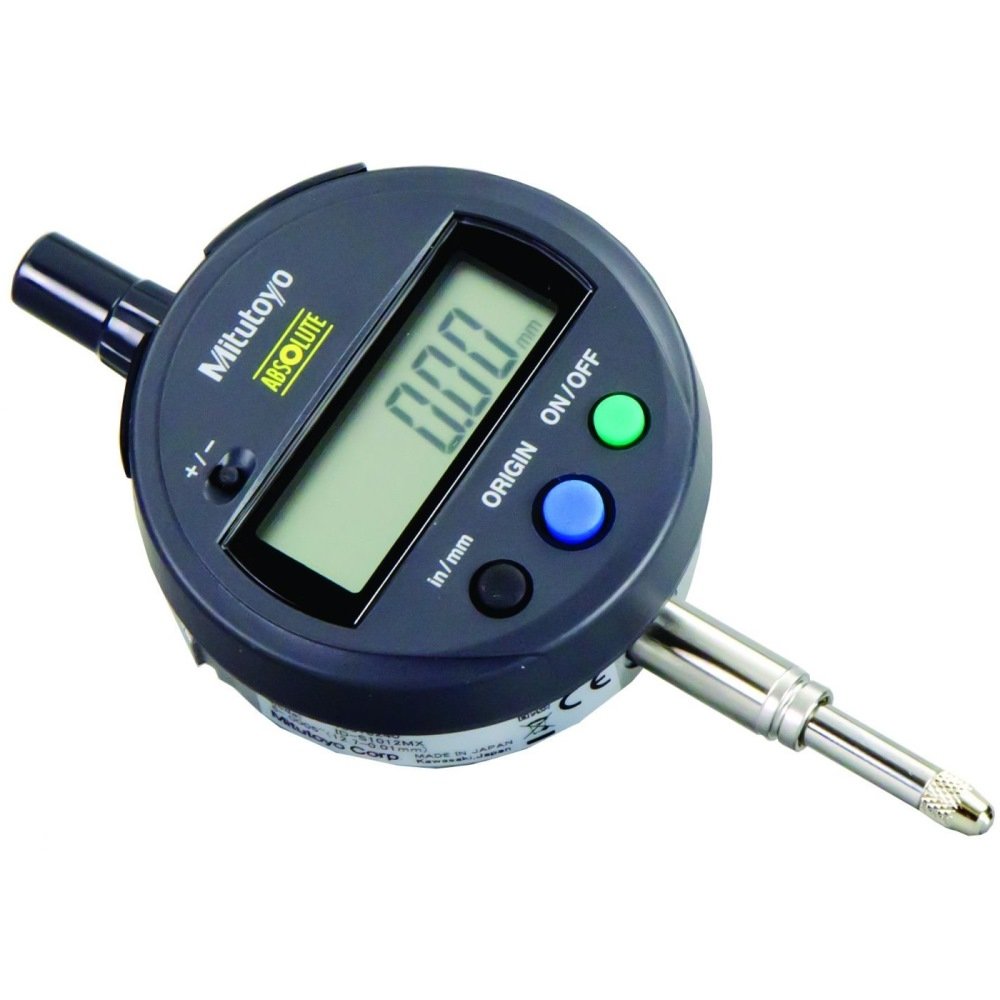

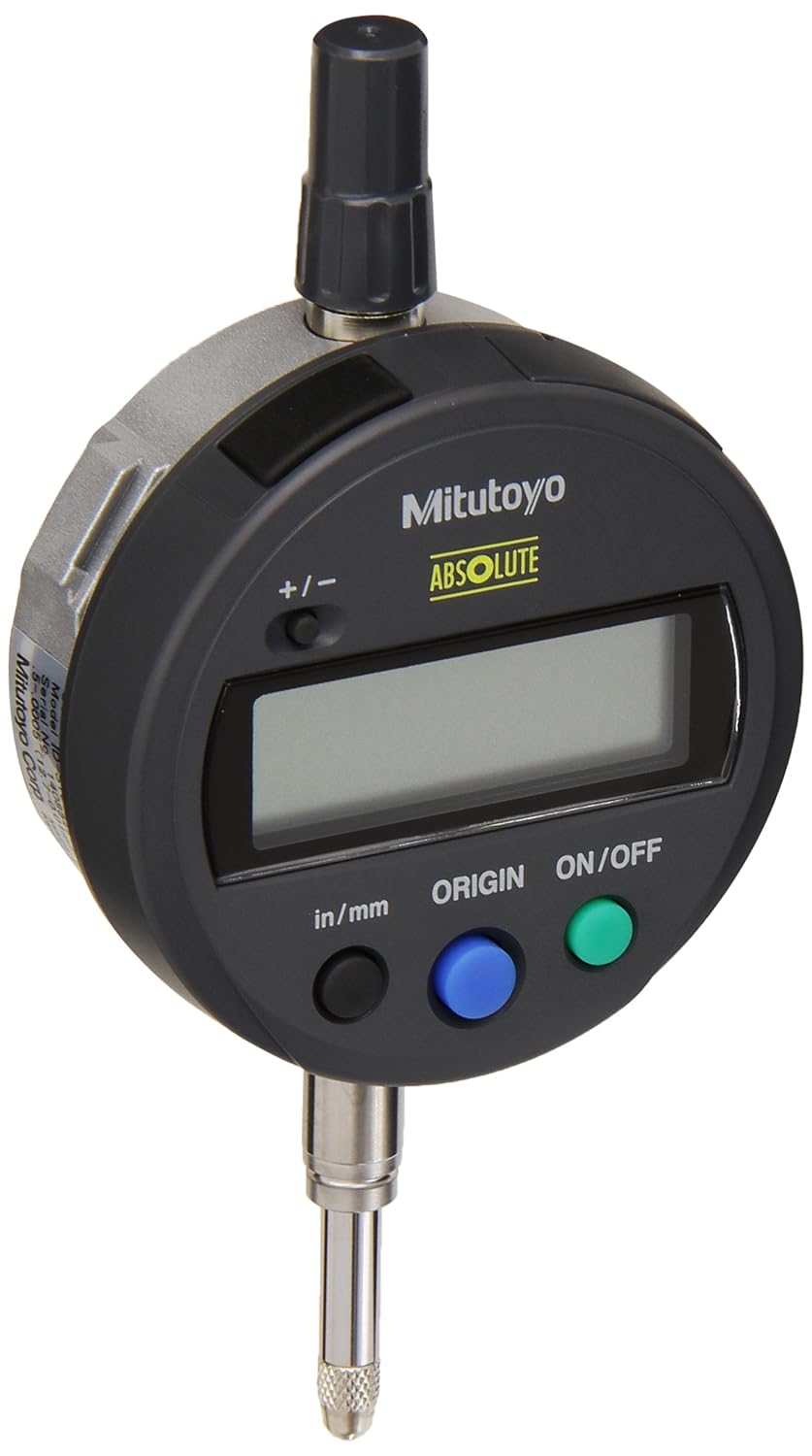

The 543-782 Digimatic Indicator ID-S are highly accurate and easy to use for measuring short linear distances in many different applications. Measurements are shown on an impact-resistant LCD display. Large push buttons provide direct, easy access to all of the indictor’s functions, and readings are shown on a large 9mm LCD display.

The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multipoint measurements.

It comes with a one-year manufacturer’s warranty.
Shop for 543-782 Digital Indicator at MRM Metrology, and save.
Buy 543-782 Indicator now for the best price in Canada.

Additional information

Weight 0.1500 kg

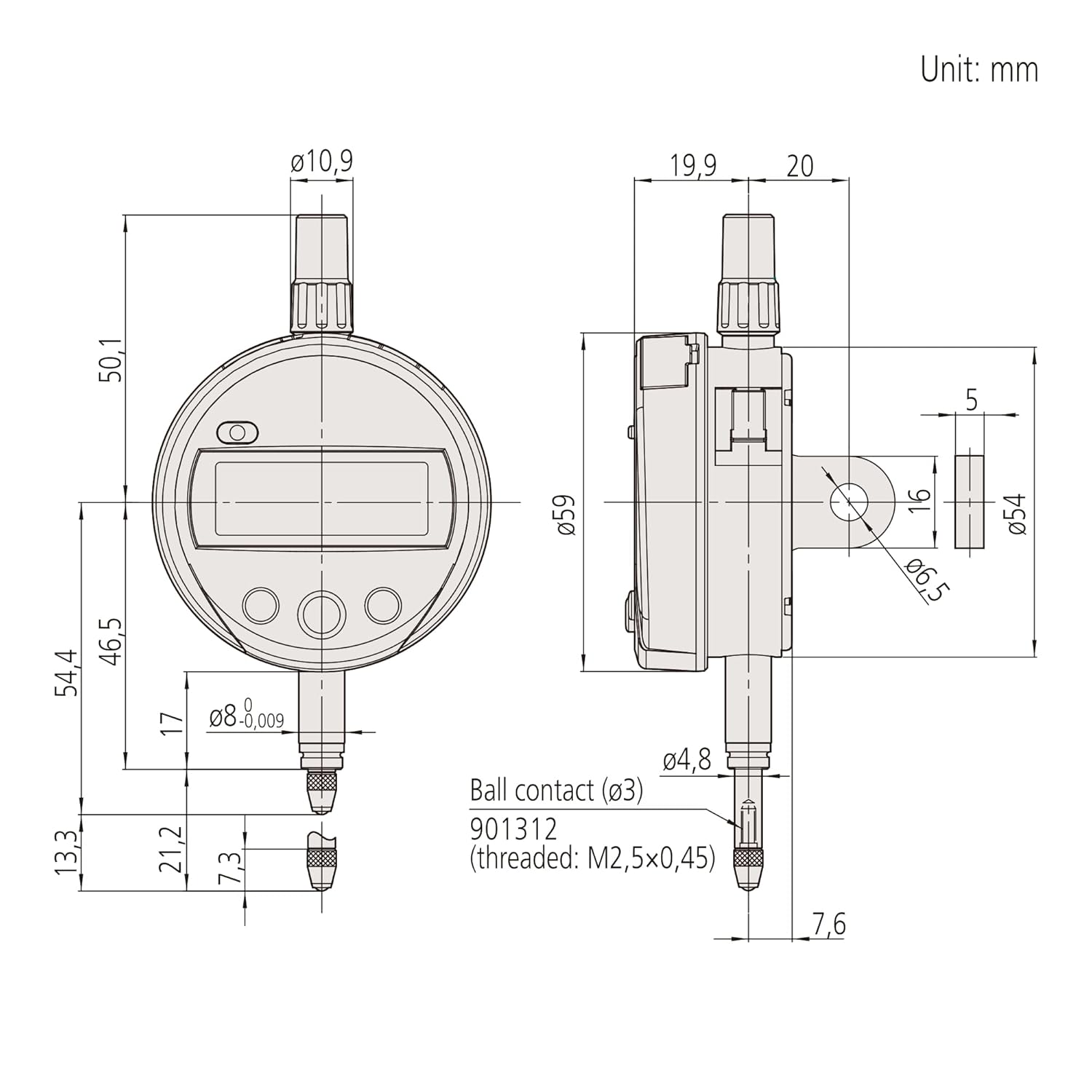

Dimensions Length 19.99cm x Width 15.01cm x Depth 5.99cm
barcode
Additional Information

Model: ID-S1012MX
Accuracy: ±0.0008”
Range: 0.5” / 12.7 mm
Resolution: 0.0005” / 0.01 mm
Display Type: LCD
Max Response Speed: Unlimited
Measuring Force: 1.5 N or less
Battery: SR44 (1 pc.)
Stem Diameter: 8 mm
Stem Thread: M2.5 x 0.45
Back Type: Lug Back
Functions: Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output
Optional Accessories: Lifting Lever, Lifting Cable, Lifting Knob, SPC cable

Brand

Mitutoyo
