$410.42$373.11 Ex. GST

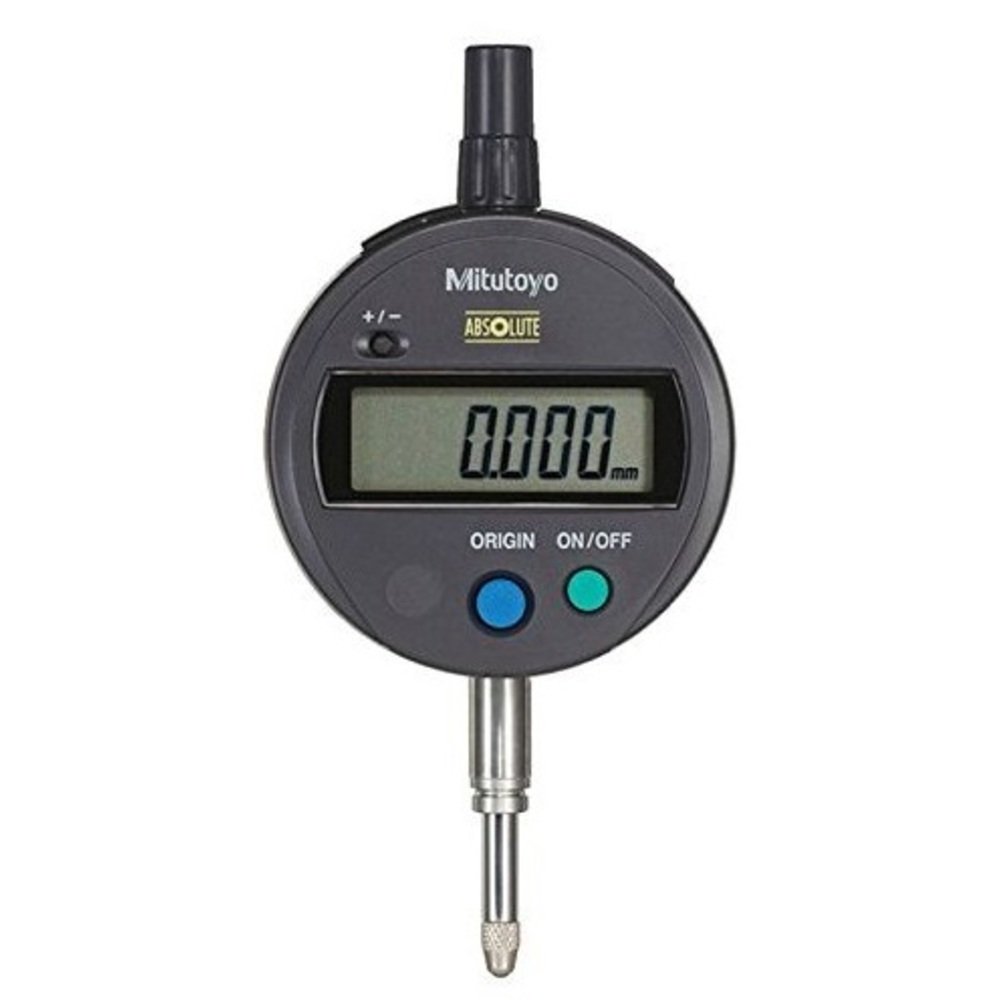

543 Series FEATURES
As compact as standard Series 2 dial indicators.
After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
SPC data output.
Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm, 0.001mm, .0005″/0.01mm, .0001”/0.001mm or .00005”/0.001mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Measuring force: Refer to the list of specifications
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours under normal use
Dust/Water protection level: IP42 (IP53:543-794, 543-795, 543-796)
Function
Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output,inch/mm conversion
(on inch/metric models only)
Alarm: Low voltage, Counting value composition error, Over-flow error
| Weight | 0.1400 kg |
|---|---|
| Dimensions | Length 19.05cm x Width 10.92cm x Depth 7.62cm |
| barcode | |
| Additional Information | Weight (in lbs): 1 |
