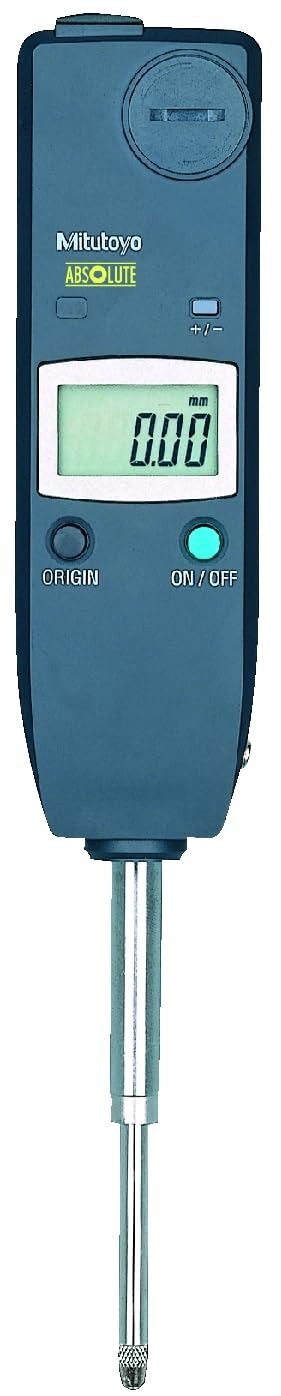

Mitutoyo DIGIMATIC INDICATOR 575-121

Digital/Analog: Digital
Inch-Metric: Metric
Delivered: In a box with SR44 battery and spindle lifting handle 137693
Range: 25.4 mm
Digital Step: 0.01 mm
Max. Permissible Error E MPE (Total Range): 0.02 mm
H MPE (Hysteresis): 0.02 mm
R MPE (Repeatability): 0.01 mm
Measuring Force MPL: ≤1.8 N
Protection: IP42
Type: EN ISO Standard
Mass: 140 g
Display: LCD, character height 8.5 mm
Max. Response Speed: Unlimited
Alarm: Low voltage, sensor error, ABS data composition error
Stem Diameter: 8 mm
Contact Point: Carbide ball, thread: M2.5×0.45
Power Supply: 1 battery SR44
Battery Life: Approx. 20,000 hours
Remarks: This digital indicator has data output but no integrated data button, so for USB Input Tool Direct Cable (see optional accessory), the USB-ITPAK Software is required.
Digimatic Data Output: Yes
ON/OFF: Yes
ORIGIN (ABS-Zero): Yes
Counting Direction Switchable: Yes
Digital Scale: Electrostatic capacitance type absolute linear encoder
