Mitutoyo DIGIMATIC MIC 342-271-30

Product Code: 342-271-30

$674.82$613.47 Ex. GST

Product Code: 342-271-30 SKU 342-271-30 Categories DIGIMATIC MIC, MEASUREMENT

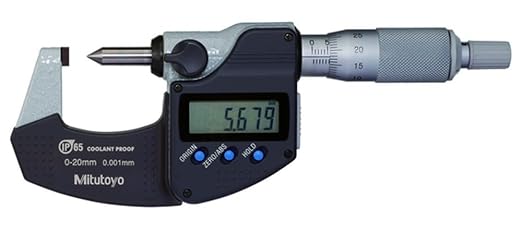

Mitutoyo DIGIMATIC MIC 342-271-30

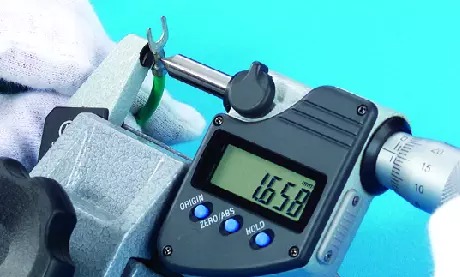

Mitutoyo DIGIMATIC MIC 342-271-30 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

This Crimp Height Micrometer that features a flat anvil and pointed spindle offers you the following benefits:
It allows you to measure the crimped height of electrical contacts.
Excellent resistance against water and dust (IP65 protection level).

Additional information

Weight	0.2700 kg
Dimensions	Length 15.8cm x Width 6.1cm x Depth 2.59cm
barcode
Additional Information	Digital/Analog: Digital Delivered: Including box, spanner, 1 SR44 battery Inch-Metric: Metric Range: 0 – 20 mm Digital step: 0.001 mm Max. Permissible Error J MPE: ±3 µm Display: LCD, character height 7.5 mm Measuring face: Hardened steel, micro-lap finish Measuring spindle: With spindle lock, ø 6.35 mm, spindle pitch 0.5 mm (342-271-30, 112-401), without spindle lock ø 6.35 mm, spindle pitch (342-451-20) 10 mm Scale: Thimble and sleeve satin chrome finish, ø18 mm Measuring force: 3 – 8 N Power supply: 1 battery SR-44 Battery life: Approx. 2.4 years (342-271-30), 5 years (342-451-20) ORIGIN: Yes ABS / INC (INC ZERO): Yes Auto Power OFF after 20 min. non use: Yes Low voltage alarm: Yes Function lock: Yes HOLD: Yes Mass: 270 g Dimensions

Brand

Mitutoyo
