Mitutoyo Digimatic Mic, Non Rotating 25 406-251-30

Description

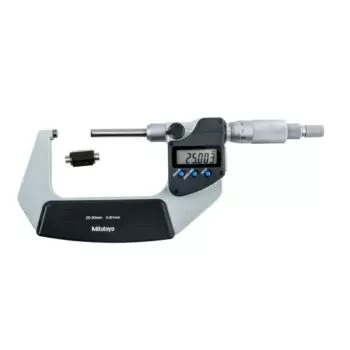

The Mitutoyo 406-251-30 Electronic Outside Micrometer with Non-Rotating Spindle has the following specifications:

Range: 25-50mm
Resolution: 0.001mm
Accuracy: +/- .003mm
Flatness: .003mm
Parallelism: .0016mm
With Ratchet Stop
Features:

Available in metric and inch/metric models
Ratchet thimble allows for easy single-hand use when measuring objects
ABSOLUTE linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Elimination of overspeed errors provides for more reliable and repeatable measurement
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero/ABS, Hold, Function Lock, Data Output, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Frame has a non-slip finish for better grip in shop environments
Supplied in fitted plastic case
The 406-251-30 non-rotating spindle type Digimatic outside micrometer provides steady positioning during measurement for better accuracy repeatability. The Mitutoyo Digimatic digital micrometer with non-rotating spindle reduces torsion on softer parts being measured and prevents workpiece deformation and wear. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on a coolant-proof, easy-to-read LCD readout.
