Mitutoyo Digimatic Micrometer 293-234-30

Description

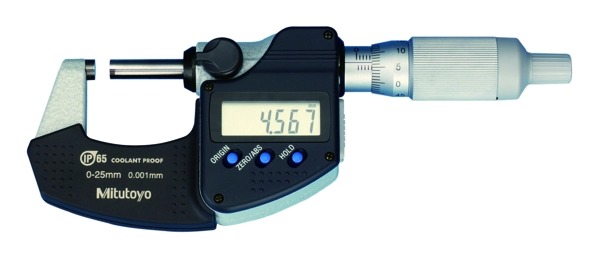

293-234-30 Mitutoyo IP65 Coolant Proof Micrometer with Ratchet Thimble: 0-25mm

The Mitutoyo 293-234-30 IP65 Coolant Proof Micrometer has the following specifications:

Range: 0-25mm
Resolution: 0.001mm
Accuracy: +/- .001mm
SPC Output: Yes
Ratchet Thimble
Technical Data:

Flatness:.000012″/.0003mm
Parallelism:
.00004″/.001mm for models up to 2″/50mm
.00008″/.002mm for models up to 4″/100mm
.00012″/.003mm for models up to 7″/175mm
.00016″/.004mm for models up to 11″/275mm
.0002″/.005mm for models over 12″/300mm
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44
Battery life: Approx. 1.2 years under normal use (8 months: over 100mm models)
Dust/Water protection level: IP65
Features:

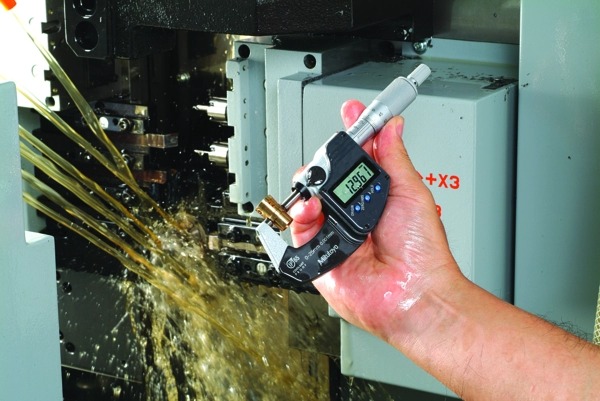

IP65 protection level, enabling use in environments exposed to cutting oil, etc*. *Anti-corrosion treatment is required after use.
Measurement data output function is available with a water-resistant connection cable.
Auto power ON/OFF function.
Certificate of inspection* is included. (2″/50mm or less range models) *It is not the type used to obtain calibration certificates.
Sizes over 1″/25mm are supplied with a standard
Supplied in fitted case. Plastic case up to 150mm/6″, Wooden box over 150mm/6″
Functions:

Function Origin-set, Zero-setting, Automatic power on/off, Data hold,Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
