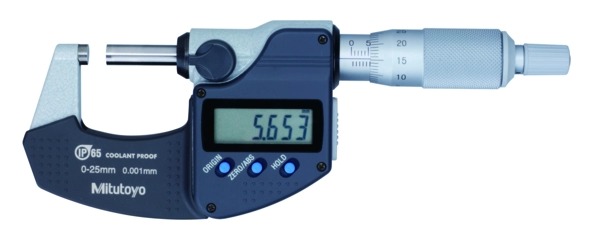

Mitutoyo Digimatic Micrometer 293-240-30

Product Code: 293-240-30

$340.00$309.09 Ex. GST

Product Code: 293-240-30 SKU 293-240-30 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Mitutoyo 293-240-30 Offers
The MDC-MX series of digimatic micrometers have a drastic improvement in measurement efficiency and have longer battery life compared to the older version.

Features

Approximately 2.4-year span of battery life has been achieved, thus reducing the inconvenience of replacing the battery
A nonslip surface with raised dots is employed for the frame cover and surface panel to achieve stable handhold measurement

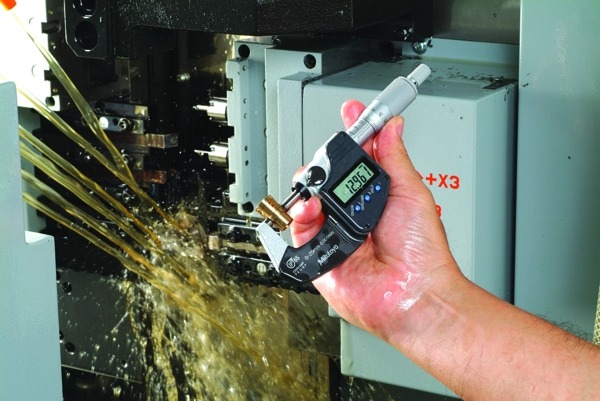

IP65 protection level, enabling use in environments exposed to cutting oil, etc
Auto power ON/OFF function
Other functions included: origin-set, zero-setting, and data hold

Additional information

Weight 0.2700 kg
Dimensions Length 20.6cm x Width 11.4cm x Depth 3.81cm
barcode
Additional Information

Digital/Analog: Digital
Delivered: Including box, spanner, SR44 battery, certificate of inspection
Inch-Metric: Metric
Range: 0 – 25 mm
Digital step: 0.001 mm
Max. Permissible Error J MPE: ±1 µm
Flatness: 0.3 µm
Parallelism: 1 µm
Data output: No
Display: LCD, character height 7.5 mm
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 5 – 10 N
Power supply: 1 battery SR-44
Battery life: Approx. 2.4 years for models ≤100 mm, 1.2 years for >100 mm
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Low voltage alarm: Yes
Function lock: Yes
HOLD: Yes
Mass: 270 g

Brand

Mitutoyo
