Mitutoyo Digimatic Micrometer 293-347-30

Description

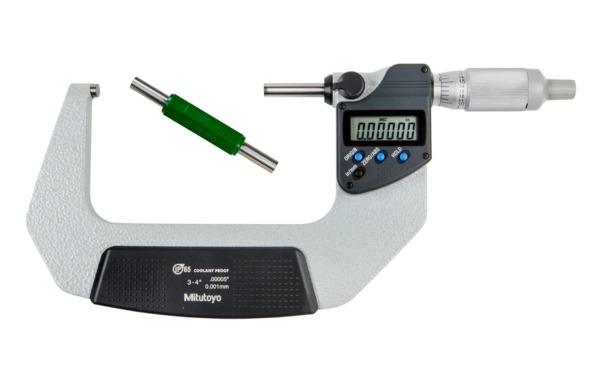

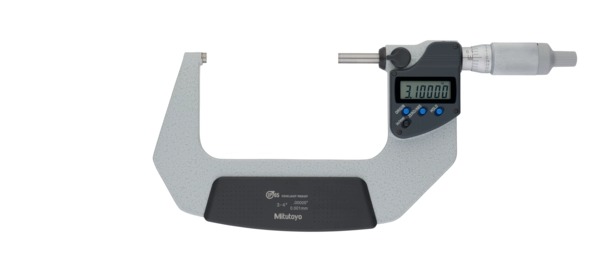

293-347-30 Mitutoyo IP65 Coolant Proof Micrometer with Ratchet Thimble: 3-4″/76.2-101.6mm

The Mitutoyo 293-347-30 IP65 Coolant Proof Micrometer has the following specifications:

Range: 3-4″/76.2-101.6mm
Resolution: .00005″/0.001mm
Accuracy: +/- .0001″
SPC Output: No

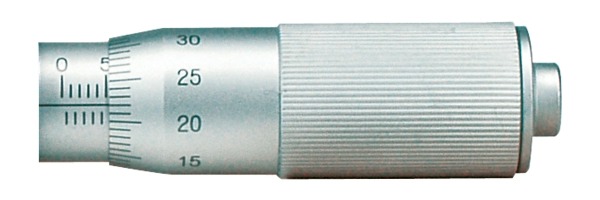

Ratchet Thimble
Technical Data:

Flatness:.000012″/.0003mm
Parallelism:
.00004″/.001mm for models up to 2″/50mm
.00008″/.002mm for models up to 4″/100mm
.00012″/.003mm for models up to 7″/175mm
.00016″/.004mm for models up to 11″/275mm
.0002″/.005mm for models over 12″/300mm
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44
Battery life: Approx. 1.2 years under normal use (8 months: over 100mm models)
Dust/Water protection level: IP65
Features:

The 293-347-30 frame is coated with an anti-slip finish for improved grip during use
Twice as long battery life than previous models improves throughput and efficiency
Auto power ON/OFF function saves battery life and allows for easier use
Includes a standard bar except for the 0-1”/0-25mm model
Some models include a Mitutoyo Certificate of Inspection*
Supplied in a plastic, fitted case
IP65 protection permits use in environments exposed to cutting oil, dust, etc.
