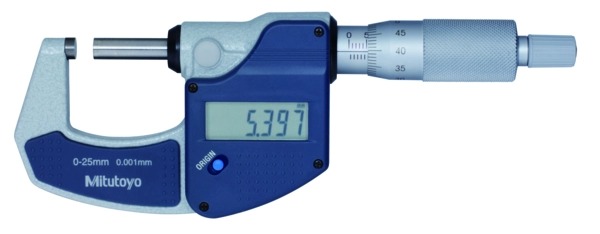

Mitutoyo DIGIMATIC MICROMETER 293-821-30

Product Code: 293-821-30

$328.55$298.68 Ex. GST

Product Code: 293-821-30 SKU 293-821-30 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

A Mitutoyo basic, cost-effective digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.

Additional information

Weight 0.2750 kg
barcode
Additional Information

Digital/Analog: Digital
Delivered: Including box, spanner, SR44 battery, certificate of inspection
Inch-Metric: Metric
Range: 0 – 25 mm
Digital step: 0.001 mm
Max. Permissible Error J MPE: ±2 µm
Planned: 0.3 µm
Parallelism: 1 µm
Display: LCD, character height 7.5 mm
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 5 – 10 N
Power supply: 1 battery SR-44
Battery life: Approx. 2.4 years
ORIGIN: Yes
Auto Power OFF after 20 min. non use: Yes
Low voltage alarm: Yes
Function lock: Yes
Mass: 275 g
