Mitutoyo Digimatic Micrometer 300-325Mm 293-582

Description

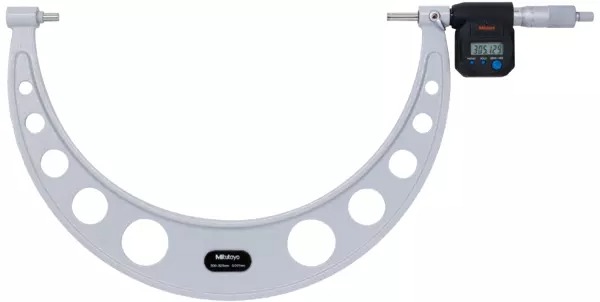

293-582 Mitutoyo Digimatic Micrometer – Metric: 300-325mm

The Mitutoyo 293-582 Digimatic Micrometer – Metric has the following specifications:

Range: 300-325mm
Resolution: 0.001mm
Accuracy: ±6um
Features:

Provided only with zero set and in/mm (inch/metric models only) keys.
A ratchet stop or friction thimble for a constant measuring force.

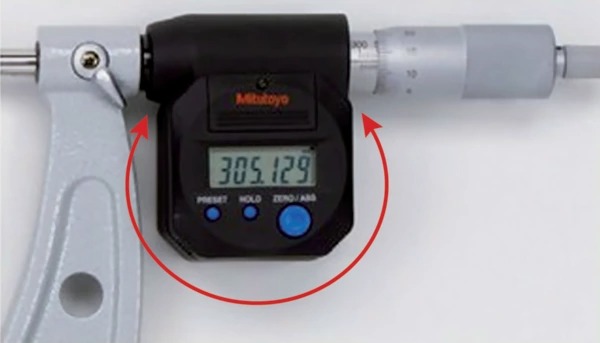

Measurement readout with large characters on the LCD.
No spindle clamp. No data output.
Supplied in fitted plastic case.
Technical Data:

Accuracy: Refer to the list of specifications.
Resolution: .0001″/0.001mm or 0.001mm
Flatness: .000024″ / 0.6um
Parallelism: .0002″/ 5um for models up to 15″/ 375mm | .00024″/ 6um for models up to 19″/ 475mm | .00028″/ 7um for models over 20″/ 500mm
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44 (2 pcs.), 938882
Battery life: Approx. 1.8 years under normal use
Function:

Preset, Zero-setting, Power ON/OFF, Data hold, Data output, inch/mm conversion (on inch/metric models only) Alarm: Low voltage, Counting value composition error
