Mitutoyo DIGIMATIC MICROMETER 314-261-30

Description

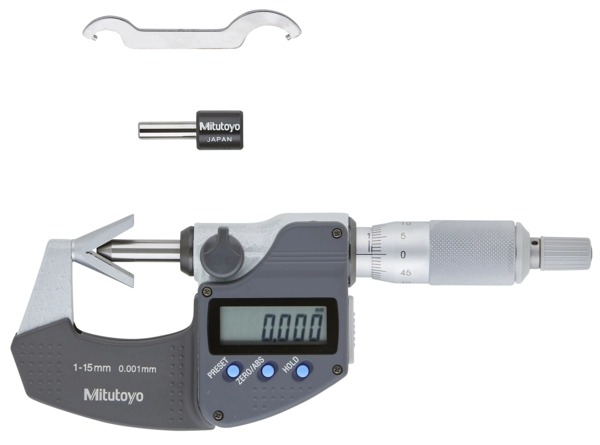

314-261-30 Mitutoyo 3 Flute Electronic V-Anvil Micrometer: 1-15mm

The Mitutoyo 314-261-30 Electronic V-Anvil Micrometer has the following specifications:

Range: 1-15mm
Resolution: .001mm
Accuracy: +/- .004mm
Setting Standard: 5mm
Features:

Available in Metric and Inch/Metric models
V-Anvils with a centerline groove are available for measuring the pitch diameter of taps by the single-wire method
Ratchet mechanism provides an audible click to ensure measurement is being performed with a constant force
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, 2 Presets, Function Lock, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments

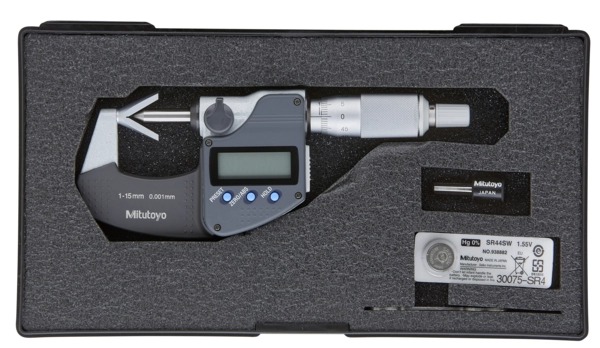

Supplied in fitted plastic case

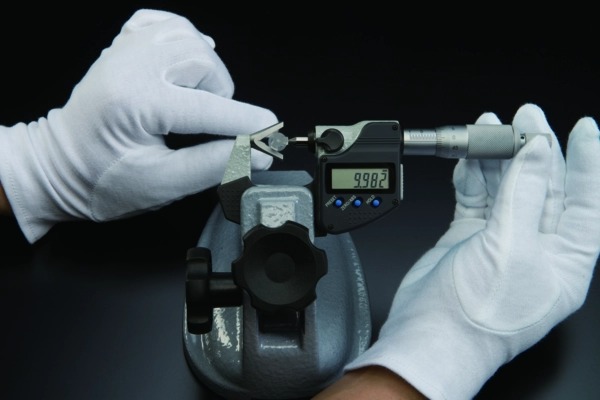

The Mitutoyo 314-261-30 Digimatic V-Anvil micrometer measures the outside diameter of cutting tools such as taps, reamers and end mills with three flutes. The Mitutoyo Digimatic V-Anvil digital micrometer pointed spindle and V-Anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate results. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.

Technical Data:

Technology: Digimatic
SPC Output: Yes
Ratchet/Thimble: Ratchet Stop
Measuring Faces: Carbide tipped (spindle only)
Display: LCD
Battery: SR44 (1 pc.) 938882
Battery life: Approx. 2.4 years under normal use
Remarks: 3-Flute
Optional Accessories: 05CZA662 (1m Cable) or 05CZA663 (2m Cable)
