Mitutoyo DIGIMATIC MICROMETER 324-251-30

Description

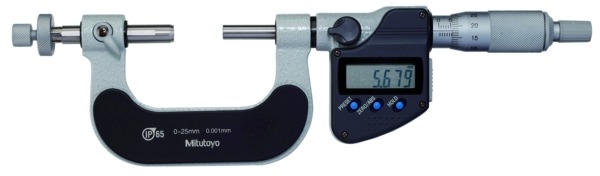

324-251-30 Mitutoyo IP65 Electronic Gear Tooth Micrometer: 0-25mm

The Mitutoyo 324-251-30 IP65 Electronic Gear Tooth Micrometer has the following specifications:

Range: 0-25mm
Accuracy: +/- .004mm
Resolution: .001mm
Features:

Available in Metric and Inch/Metric models
Interchangeable ball anvil-spindle tips for various gear modules (0.5-5.25) are optional
Ratchet mechanism provides an audible click to ensure measurement is performed with a constant force
SPC output function allows for quick and easy data management in real time
Functions include Zero/ABS Setting, Data Hold, Data Output, Function Lock, 2 Presets, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Includes a standard bar except for 0-1″ or 0-25mm models
Supplied in fitted plastic case (models over 150mm have a wooden case)

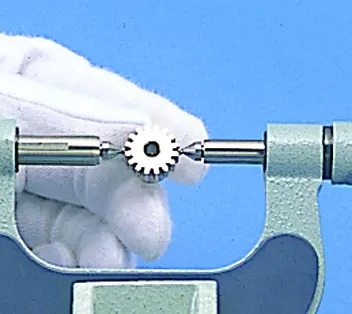

The Mitutoyo Digimatic digital gear tooth micrometer measures gear modules with precision using optional interchangeable anvil-spindle tips to measure different sizes and types of gears. The Mitutoyo 324-251-30 gear tooth micrometer measures the over-pin diameter of gears. Precision carbide anvil and spindle ball-tipped measuring surfaces are interchangeable, with optional ball-tip faces allowing for measurement of various gear modules. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Readings are displayed on an easy-to-read LCD readout.
