Mitutoyo Digimatic Micrometer 342-252-30

Product Code: 342-252-30

$868.00$789.09 Ex. GST

Product Code: 342-252-30 SKU 342-252-30 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

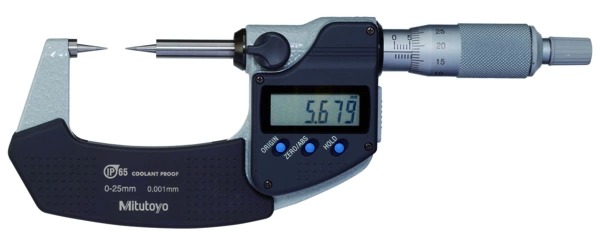

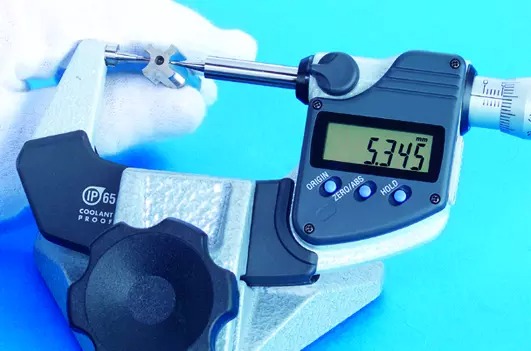

The 342-252-30 Digimatic pointed digital micrometer features 15-degree pointed anvil and spline to measure small grooves on parts or workpieces along with keyways and web thicknesses on drills with superior accuracy. The pointed anvil and spindle contacts are ideal at measuring small, hard-to-reach areas which a normal or reduce-diameter spindle and anvil are unable to access. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.

Additional information

Weight 0.4700 kg
barcode
Additional Information

Digital/Analog: Digital

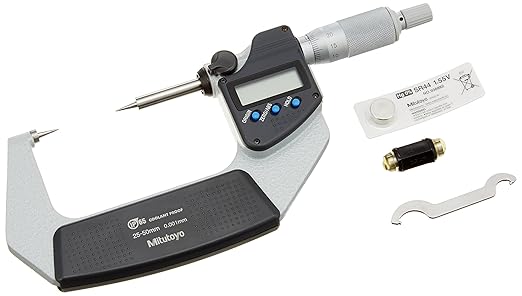

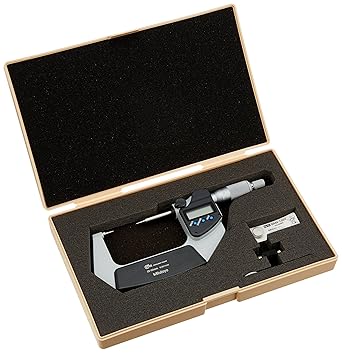

Delivered: Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric: Metric
Range: 25 – 50 mm
Digital Step: 0.001 mm
Max. Permissible Error J MPE: ±2 µm
Display: LCD, character height 7.5 mm
Measuring Face: Carbide pointed spindle and anvil, measuring point radius 0.3 mm
Tip: 15°
Measuring Spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring Force: 3 – 8 N
Power Supply: 1 battery SR-44
Battery Life: Approx. 2.4 years
ORIGIN: Yes
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Low Voltage Alarm: Yes
Function Lock: Yes
HOLD: Yes
Mass: 470 g

Brand

Mitutoyo
