Mitutoyo Digimatic Micrometer 342-261-30

Product Code: 342-261-30

$723.31$657.55 Ex. GST

Product Code: 342-261-30 SKU 342-261-30 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

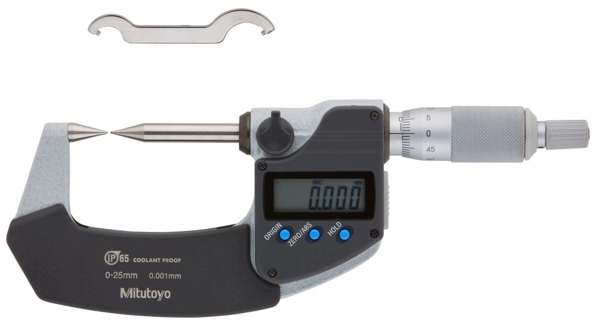

This Digimatic Point Micrometer features a pointed anvil and
spindle, and offers the following benefits:
Its pointed anvil and spindle has a choice of included angle,
ending in small-radius contact points.

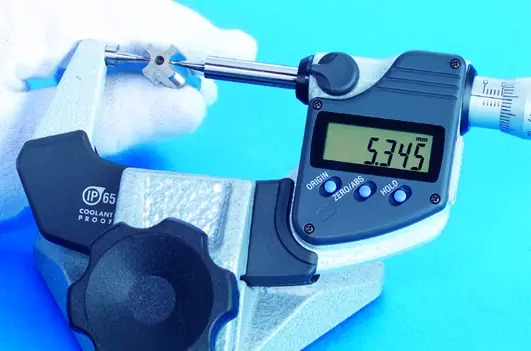

You can use it to measure grooves, steps and similar.

Additional information

Weight 0.3300 kg
Dimensions Length 8.51cm x Width 10.59cm x Depth 13.31cm
barcode
Additional Information

Digital/Analog: Digital

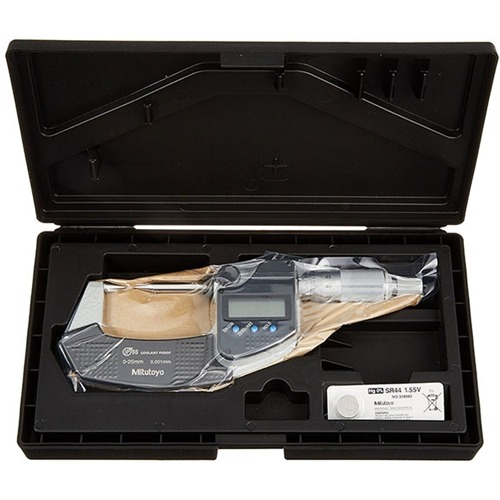

Delivered: Including box, spanner, 1 SR44 battery
Inch-Metric: Metric
Range: 0 – 25 mm
Digital Step: 0.001 mm
Max. Permissible Error J MPE: ±2 µm
Display: LCD, character height 7.5 mm
Measuring Face: Carbide pointed spindle and anvil, measuring point radius 0.3 mm
Tip: 30°
Measuring Spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring Force: 3 – 8 N
Power Supply: 1 battery SR-44
Battery Life: Approx. 2.4 years
ORIGIN: Yes
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Low Voltage Alarm: Yes
Function Lock: Yes
HOLD: Yes
Mass: 330 g

Brand

Mitutoyo
