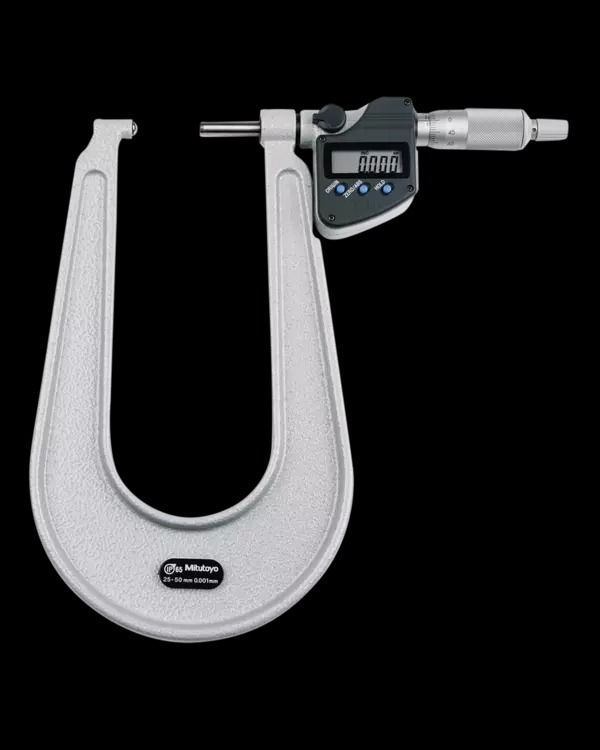

This Digimatic Sheet Metal Micrometer is designed with a deep frame, for measuring the thickness of sheet material.
Additional information
Weight
0.9200 kg
barcode
Additional Information
Digital/Analog: Digital

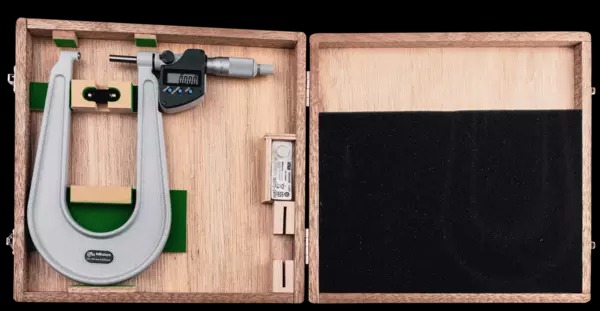

Delivered: Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric: Metric
Range: 25 – 50 mm
Digital step: 0.001 mm
Max. Permissible Error J MPE: ±4 µm
Planned: 0.6 µm
Parallelism: 3 µm
Display: LCD, character height 7.5 mm
Measuring face: Carbide-tipped, micro-lap finish

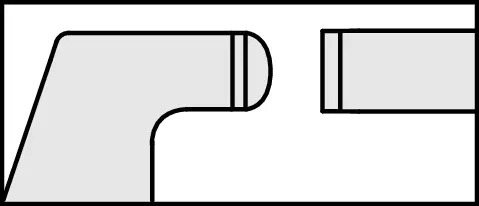

Anvil / Spindle: Type B, spherical/flat
Measuring spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 3 – 8 N
Power supply: Battery SR-44
Battery life: Approx. 2.4 years, Approx. 1.8 years (389-514)
ORIGIN: Yes
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Low voltage alarm: Yes
Function lock: Yes
HOLD: Yes
2 x PRESET: Yes
Throat depth: 160 mm
Mass: 920 g
