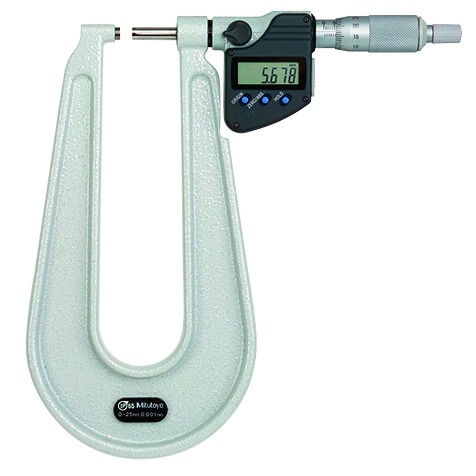

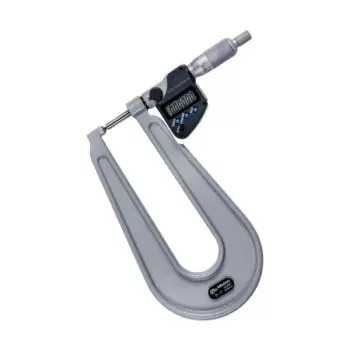

Mitutoyo Digimatic Micrometer 389-271-30

Description

The Mitutoyo 389-271-30 Electronic Sheet Metal Micrometer has the following specifications:

Range: 0-25mm
Resolution: 0.001mm
Accuracy: +/- .004mm

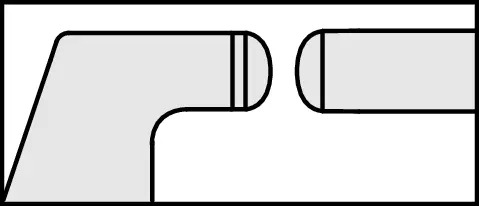

Anvil/Spindle Combination: Spherical/Spherical
Throat Depth: 160mm
Features:

Models with a spherical anvil and flat spindle, and spherical anvil and spherical spindle are available
Available in Metric or Inch/Metric models
Carbide tips help resist wear on the measuring faces for accurate measurements for an extended period of time
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Certificate of Inspection is provided
Includes a standard bar except for 0-25mm or 0-1″/25mm model
IP65 protection permits use in environments exposed to cutting oil, dust, etc.**
Supplied in fitted plastic case
The Mitutoyo 389-271-30 Digimatic sheet metal micrometer is designed with a deep measuring throat to enable multiple measurements across a linear plane on materials such as sheet metal, paper, plastic and rubber. This micrometer has an IP65 dust and water protection level. The Mitutoyo digital sheet metal micrometer is available with a 6-inch or 12-inch throat, allowing the user to take measurements in the middle of sheets of metal, plastic, rubber and paper with high accuracy. Readings are displayed on an easy-to-read LCD readout with accessible function buttons. The coolant-proof micrometer’s ratchet thimble mechanism provides a constant measuring force on the spindle to ensure accurate, repeatable measurements.
