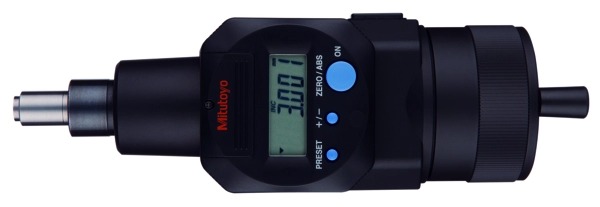

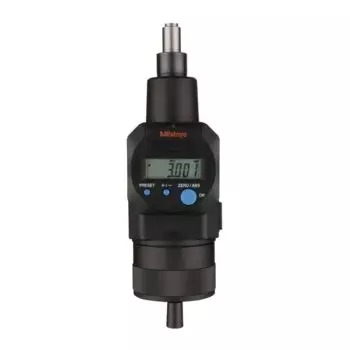

Mitutoyo Digimatic Micrometer Head 164-163

Description

164-163 Mitutoyo Digimatic Micrometer Head: 0-50mm

The Mitutoyo 164-163 Digimatic Micrometer Head has the following specifications:

Range: 0-50mm
Resolution: .001mm
Accuracy: +/- .003mm
Mass: 490g
Features:

Available in Metric and Inch / Metric models
Spindle diameter is .433″/11mm
Mic head total length (at stroke end) is 7.15″/181.5mm
Measurement results are displayed with an LCD readout that rotates 330 degrees
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Functions include Zero Setting, Data Hold, Data Output, Preset, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Twice as long battery life than previous models improves throughput and efficiency
Auto power ON/OFF function saves battery life and allows easier use
Supplied in a plastic, fitted case
The Mitutoyo 164-163 digimatic digital micrometer is designed to deliver accurate, repeatable stage movements or stroke measurements. Its display rotates 330 degrees for easy reading in any position. The Mitutoyo Digimatic digital micrometer head rotates up to 330 degrees for reading in any position, making this micrometer head ideal for small microscope and precision tool set ups. The non-rotating spindle eliminates radial torsion on a workpiece surface and the spindle, providing accurate results that are easier to achieve. The ratchet thimble provides a constant measuring force on the spindle to ensure accurate, repeatable measurements.
