Mitutoyo Digimatic Micromter 340-251-30

Product Code: 340-251-30

$1,048.40$953.09 Ex. GST

Product Code: 340-251-30 SKU 340-251-30 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

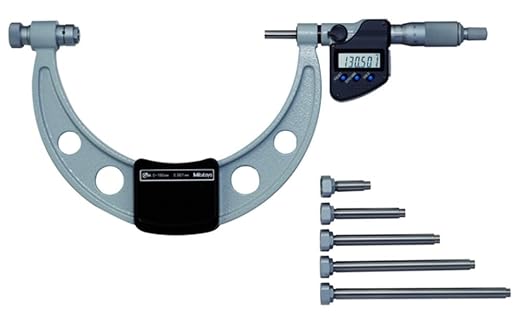

This Digimatic Micrometer offers you an extra wide measuring range, and has the following benefits:
Easy, interchangeable anvils allow a wide range of measurements.
Ratchet stop for constant force.

Additional information

Weight 0.9600 kg
Dimensions Length 32.99cm x Width 15.29cm x Depth 2.59cm
barcode
Additional Information

Digital/Analog: Digital
Inch-Metric: Metric
Range: 0 – 150 mm
Digital step: 0.001 mm
Limit of error: ±6 µm
Spindle feed error: 3 µm
Flatness: 0.6 µm
Parallelism: 3 µm
Display: LCD, character height 7.5 mm
Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle: With spindle lock, ø6.35 mm (≤300 mm), ø8 mm (>300 mm), spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 5 – 10 N
Power supply: Battery SR-44
Battery life: Approx. 2.4 years, Approx. 1.8 years (> 300 mm)
Setting standard: 5 (25, 50, 75, 100, 125 mm)
Interchangeable anvils: 6
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Low voltage alarm: Yes
Function lock: Yes
HOLD: Yes
2 x PRESET: Yes
Delivered: Including box, spanner, setting standard, 6 anvils, 1 SR44 battery
Mass: 0.96 kg
