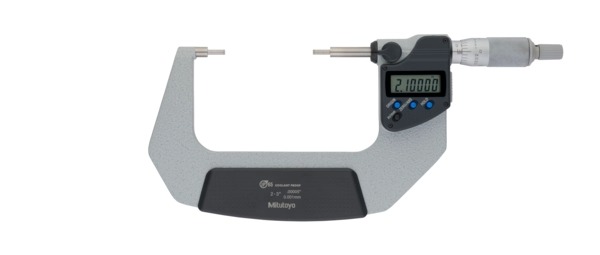

Mitutoyo DIGIMATIC SPLINE MICROMETER 331-353-30

Description

The Mitutoyo 331-353-30 IP65 Electronic Spline Micrometer has the following specifications:

Range: 2-3″/50.8-76.2mm
Resolution: .00005″/.001mm
Accuracy: +/- .0001″
Anvils: Type A
Anvil Dimensions:

Type A: .118″/3mm Diameter, .393″/10mm Length
Type B: .078″/2mm Diameter, .196″/5mm Length
Features:

Available in Metric and Inch/Metric Models
IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for use on most shop floor environments
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero Setting, Data Hold, Function Lock, Data Output, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Scale is laser etched on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Includes a standard bar except for 0-25mm models
Supplied in fitted plastic case

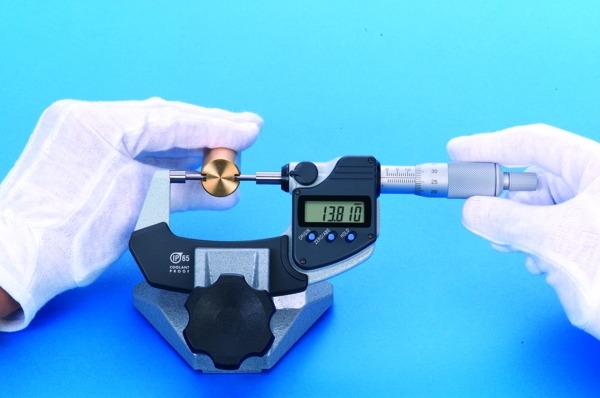

The Mitutoyo 331-353-30 Digimatic coolant-proof digital spline micrometer features a reduced diameter anvil and spindle for measuring splined shafts, slots and keyways. This micrometer has an IP65 dust and water protection level. The digital Mitutoyo spline micrometer is ideal for measuring minor indents, slots, spline shafts and keyways on workpieces. The anvil and spindle each have reduced diameters to better measure internal features with high accuracy. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on a coolant-proof, easy-to-read LCD display.
