Mitutoyo DIGIMATIC THICKNESS GAUGE 547-526S

Description

The Mitutoyo 547-526S Digital Thickness Gage has the following specifications:

Range: 0-.470″/12mm
Resolution: .0001″/.001mm
Accuracy: +/- .0002″
Measuring Force: 1.5N or less
Indicator: Digimatic IDS
Spindle/Anvil Material: Ceramic
Features:

Inch/Metric models
Available with deep-throated frames
Available with SPC output capabilities
Spindles and anvils on most models are constructed with ceramic for better corrosion resistance
Carbide contact points are only available on model 547-400S
Signal can be output to external device; waterproof data output connector protects against dust, water and oil ingress
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
SPC output function allows for quick and easy data management in real time
Unlimited response speed eliminates over-speed errors
Measuring force is 1.5N or less

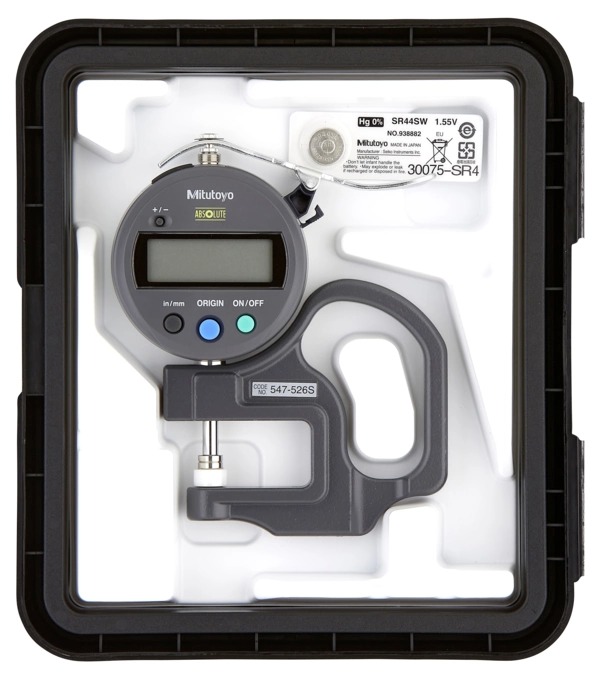

Supplied in a fitted plastic case

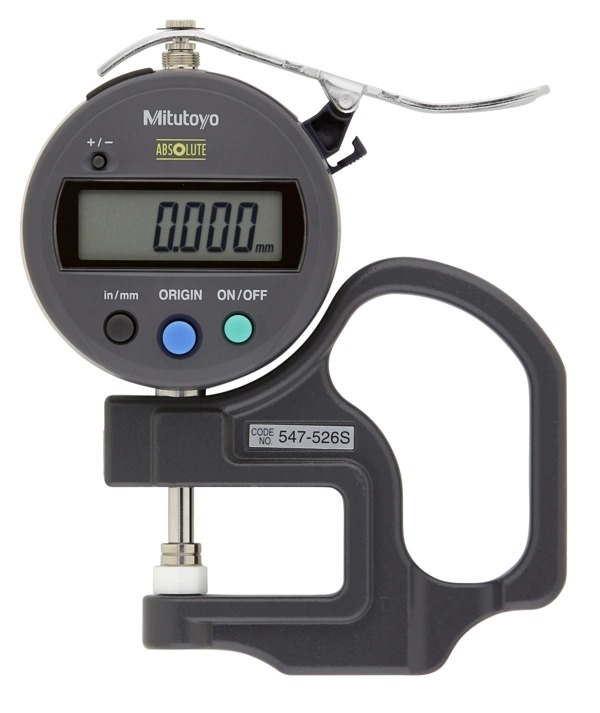

The Mitutoyo 547-526S flat anvil digital gage quickly measures the thickness of different materials or objects with high accuracy. Measurements are shown on an easy-to-read LCD display. These gages are available with a standard or deep-throated frame. The Mitutoyo flat anvil ABSOLUTE thickness gage can measure the thickness of a wide range of materials and objects including paper, film, wire, sheet metal and other similar materials. These flat anvil thickness gages utilize the Mitutoyo ID-C and ID-S Digimatic indicators to provide error-free LCD readings. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy.
