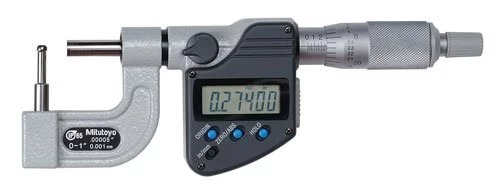

Mitutoyo DIGIMATIC TUBE MICROMETER 395-363-30

Description

The Mitutoyo 395-363-30 IP65 Electronic Tube Micrometer has the following specifications:
Range: 0-1″/25.4mm
Resolution: .00005″/.001mm
Accuracy: +/- .00015″
Anvil: Type C 4.7mm Spherical
Mass (g): 310

Features:
Available with pin, spherical and cylindrical anvils
Available in Metric and Inch/Metric models
Designed to measure the wall thickness of various tubing
Measuring surfaces are constructed of carbide to reduce wear
IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for most shop floor environments
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Includes a standard bar except for 0-1″/25.4 or 0-25mm model
Supplied in fitted plastic case
The Mitutoyo 395-363-30 Digimatic coolant-proof tube micrometer measures the thickness of tube walls within +/- 0.00015” of accuracy. This micrometer has an IP65 dust and water protection level. The Mitutoyo Digimatic digital tube micrometer is available with either flat or spherical measuring face options to measure the wall thickness of various tubes. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.

Types of Tube Micrometer Anvils:
Type A: 1.8mm Pin
Type B: 3.5mm Spherical

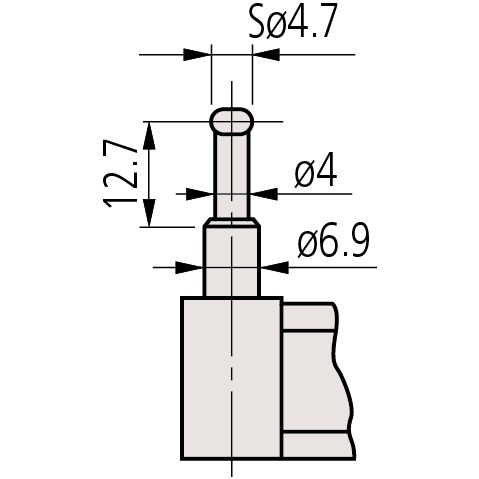

Type C: 4.7mm Spherical
Type D: 8.0mm Cylindrical
