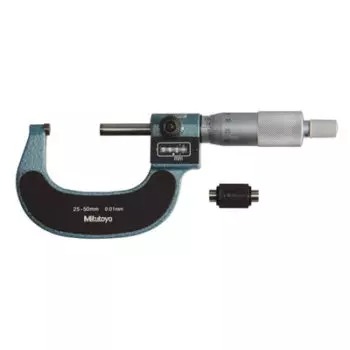

Mitutoyo Digit Micrometer A 193-102

Description

The Mitutoyo 193-102 Digital Outside Micrometer with Digit Counter has the following specifications:

Range: 25-50mm
Graduations: .01mm
Accuracy: +/- .002mm
With Ratchet Stop
Features:

Available in Inch and metric
The digital outside micrometers are available with ratchet stop for repeatable measurements on your workpieces. A few models have a frictions thimble.
Mechanical digit counter allows easy measurement readings to .001″ or .01mm
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
A spindle lock provides secure locking of the measurement position
Satin chrome finish on the thimble and sleeve resists rust and reduces glare
Includes a standard bar except for 0-1″ or 0-25mm
Supplied in fitted plastic case
Technical Data:

Technology: Digit counter
Units: Metric
Ratchet/Thimble: Ratchet Stop
Measuring Faces: Carbide tipped
The Mitutoyo 193-102 outside micrometer with digit counter delivers highly accurate measurements down to .001mm resolution with the Vernier scale. The Mitutoyo mechanical digit counter micrometer with 0.01mm or .001” readings provides quick, error-free readings. The Mitutoyo outside micrometer with mechanical digit counter features a ratchet-stop mechanism helps provide uniform pressure on a workpiece for precise, repeatable measurements. The frame has a satin chrome finish for durability, and measurements on the thimble and conversions on the frame are laser etched for easier reading. A Vernier scale with slanted barrel markings to help reduce parallax errors provides highly accurate outside diameter measurements.
