Mitutoyo Digital Micrometer 295-313

Description

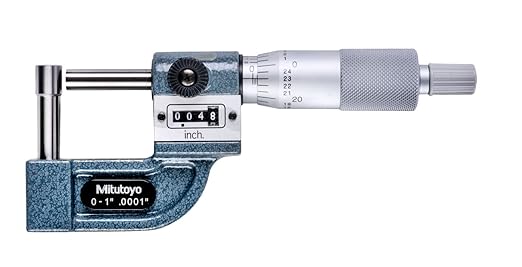

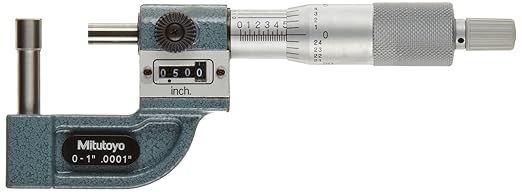

295-313 Mitutoyo Tube Micrometer with Mechanical Counter: 0-1″

The Mitutoyo 295-313 Tube Micrometer with Mechanical Counter has the following specifications:

Range: 0-1″
Graduations: .0001″
Accuracy: +/- .00015″
Anvil: Type C 4.7mm Spherical
Mass(g): 210
Features:

Available with pin, spherical and cylindrical anvils
Available in Metric and Inch models
Measurements are displayed on the micrometer’s frame with a mechanical analog digit counter
Model with a perpendicular cylindrical anvil are available
Designed to measure the wall thickness of various tubing
Measuring surfaces are constructed of carbide to reduce wear
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments

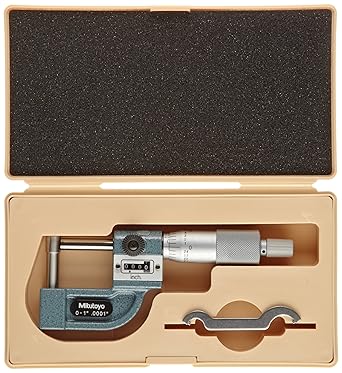

Supplied in fitted plastic case
The Mitutoyo 295-313 mechanical counter tube micrometer measures the thickness of tube walls within +/- 0.00015″/.003mm of accuracy and displays readings on an analog digit counter. Available in inch or metric units. The Mitutoyo mechanical counter tube micrometer is available with either flat or spherical measuring face options to measure the wall thickness of various tubes. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.

Technical Data:

Technology: Mechanical Counter
SPC Output: No
Ratchet/Thimble: Rachet Stop
Flatness: 0.000012″/0.3µm
