Mitutoyo DIGITAL PROTRACTOR 187-552

Product Code: 187-552

$1,742.41$1,584.01 Ex. GST

Product Code: 187-552 SKU 187-552 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

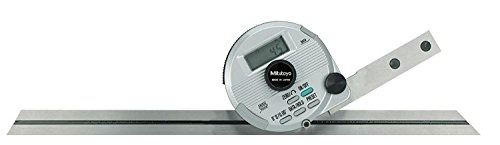

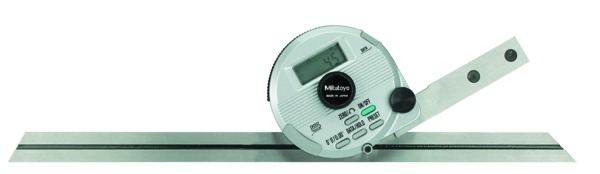

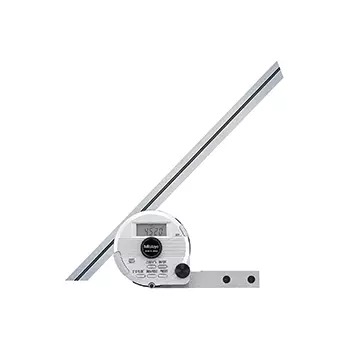

187-552 Mitutoyo Digital Universal Protractor: -360° to +360°

The Mitutoyo 187-552 Digital Universal Protractor has the following specifications:

Measuring Range: -360° to +360°
Resolution: 1′ (.01°)
Repeatability: 1′ (.01°)
Tolerance: +/- 2′ (+/- .03°)
Features:

Data output function make it easy to see the statistical data.
Can be attached to height gages. Gage holder (950750, metric)
Setting preset value.
Removable blade.

Additional information

Weight 0.0000 kg
Dimensions Length 3.51cm x Width 13.49cm x Depth 32.31cm
barcode
Additional Information

Inch-Metric: Inch/Metric
Digital Step: 1' (0.01°)
Blade Length: 12"
Max. Permissible Error: 2' (0.03°)
Repeatability: 1' (0.01°)
Battery Life: Approx. 2000 hours
ON/OFF: Yes
DATA (Output with Cable) / HOLD (Display Value): Yes
Data Output: Yes
ZERO SET: Yes
PRESET: Yes
Angle Sexagesimal/Decimal: Yes
Power Supply: 1 battery CR-2032

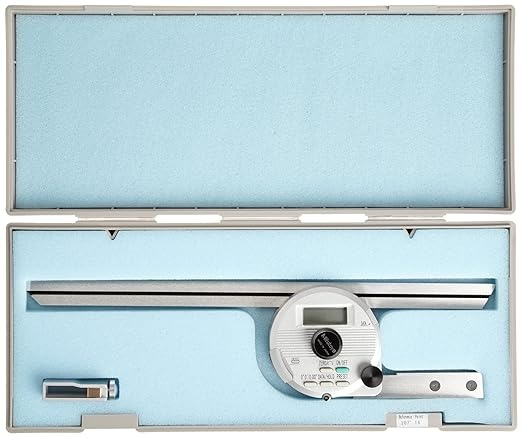

Delivered: In a box including CR-2032 battery, 300 mm steel rule, holder for height gauge
Display: LCD with character height 6.5 mm
Mass: 662 g

Brand

Mitutoyo
