Mitutoyo D’Matic Outside Mic 700-800Mm 340-524

Description

The Mitutoyo 340-524 Electronic Interchangeable Anvil Outside Micrometer has the following specifications:

Range: 700-800mm
Resolution: .001mm
Includes: 4 anvils & 4 standards
With Ratchet Stop

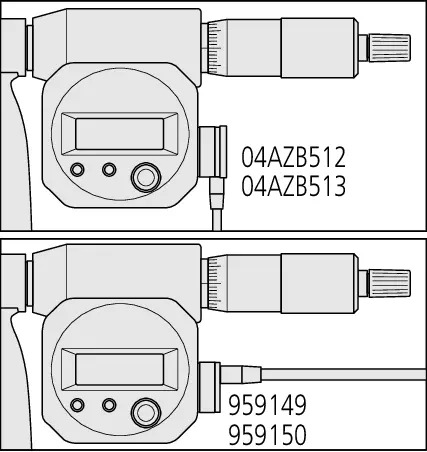

SPC Data Output
Features:

Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
SPC output function allows for quick and easy data management in real time
Zero-setting standards bar for each range is included
Functions include Origin Set, Zero/ABS, Hold, Function Lock, Data Output, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Zero-setting standards bar for each range is included
Scale is laser etched on thimble for quick and easy reading
Carbide facing on the spindle resists wear to keep surfaces flatter with longer accuracy
Speeder is always available for quick rotation of the spindle
IP65 protection permits use in environments exposed to cutting oil, dust, etc. on models up to 12″/300mm
Supplied in fitted plastic case
The Mitutoyo 340-524 Digimatic outside digital micrometer features a ratchet stop function and interchangeable anvils for measuring a wide range of workpiece sizes and material types. The Mitutoyo digital outside micrometer with interchangeable anvils and ratchet stop is ideal for measuring metal and non-metal workpieces by controlling the amount of spindle force. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Interchangeable anvils allow for measuring a wide range of workpiece sizes. Measurements are displayed on a coolant-proof, easy-to-read LCD readout.
