Mitutoyo GAUGE BLOCK 177-285

Description

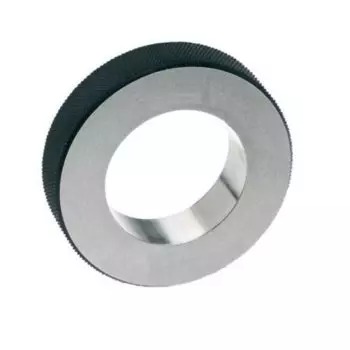

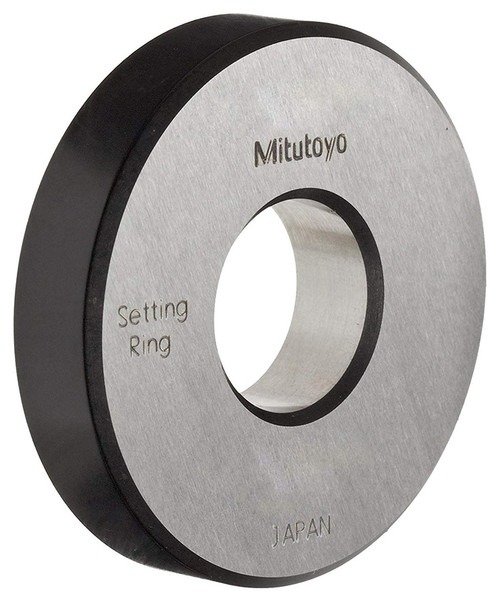

177-285 Mitutoyo Steel Setting Ring – 18mm

The Mitutoyo 177-285 Steel Setting Ring has the following specifications:

Nominal Size: 18mm
Tolerance Between Nominal and Actual Diameter: +/- .010mm
Uncertainty of Marked Diameter Value: +/- .0015mm
Roundness/Cylindricity: .001mm
Distance from the Side Face (H): 2mm
Side of Warranted Calibration Surface (K): 6mm
Outside Diameter: 45mm
E Dimension for Type B: N/A
Thickness: 10mm
Type: A
All Mitutoyo Setting Rings can be certified to NIST for an additional charges. Typical turn-around on having a setting ring certified is approximately 4 weeks. If you require the Mitutoyo 177-285 steel setting ring certified prior to shipping out, please reach out to our inside sales team for assistance.

Features:

Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
If a setting ring of an optimal size is prepared, it can be used for calibration.
