The Mitutoyo 516-903-26 rectangular steel gage block set has the following specifications:
Number of Blocks: 81 Pieces
Grade: AS-1
Material: Steel
The 81 Piece Square Gage Block Set is made up of the following blocks:
9 Blocks: .1001-.1009″ (.0001″)
49 Blocks: .101-.149″ (.001″)
19 Blocks: .05-.95″ (.05″)
4 Blocks: 1-4″ (1″)
Features:
Available in steel and ceramic (CERA) block sets with multiple blocks per set options
Specific, repeated heat treatment of steel blocks reduce deterioration change over time
CERA blocks are free from dimensional change over time; have 10 times the abrasion resistance of steel gage blocks
Advanced lapping techniques achieve the best flatness, surface roughness needed for gage blocks
Black characters on gage blocks are inscribed by laser and clearly visible
Rectangular base for accurate wringing
Nominal length indicated with laser-etched, black characters
Provided with Inspection Certificate

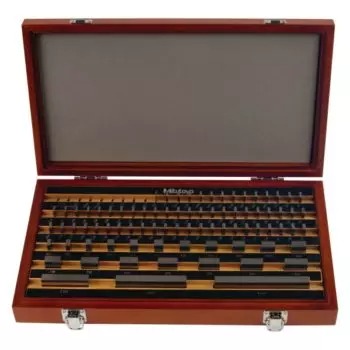

Supplied in a solid wooden case
| barcode | |
|---|---|
| Additional Information | Inch-Metric: Inch |
