Mitutoyo GAUGE BLOCK SET 516-165-26

Description

The Mitutoyo 516-165-26 rectangular ceramic long block set has the following specifications:
Range: 25-200mm
Number of Blocks: 8 Pieces
Grade: 0
Material: Ceramic

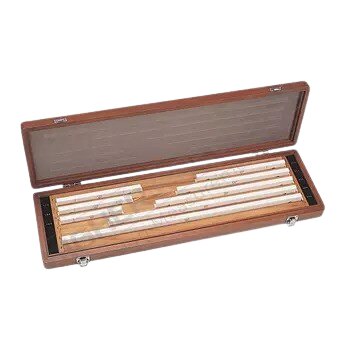

The 8 Piece Rectangular Ceramic Gage Block – Long Block Set is made up of the following blocks:
25mm, 50mm, 75mm, 100mm, 125mm, 150mm, 175mm, 200mmm

Features:
Rectangular gage block sets are supplied with a Mitutoyo certificate of inspection that the block meets American Society of Mechanical Engineers (ASME) B89.1.9-2002 standard for flatness, length, parallelism, and surface finish
High-carbon, high-chrome steel provides high hardness and wear resistance
Rectangular base for accurate wringing
Nominal length indicated with laser-etched, black characters
Identification number etched in block for traceability
A rectangular gage block can retain stable orientation both longitudinally and laterally. A wide range of application measurements can be made, including cutting tool positioning, angle measurement using a sign bar, taper measuring with a roller, and inspection of depth micrometers.
