$2,174.54$1,976.85 Ex. GST

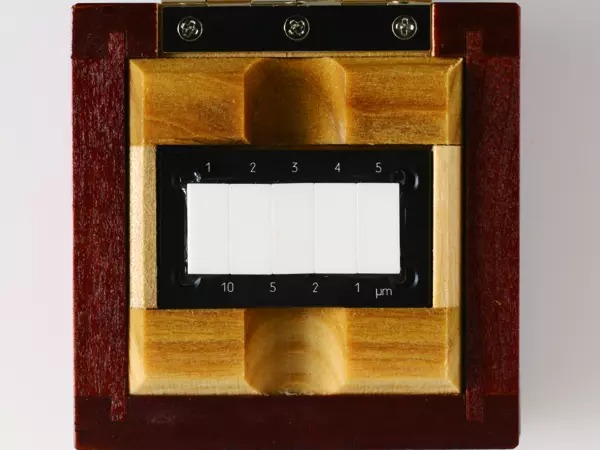

The Mitutoyo 516-498 Step Ceramic Type has the following specifications:

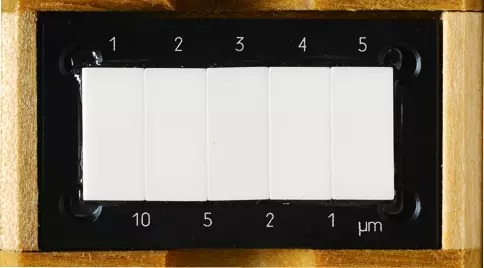

Step Value between adjacent blocks:
No. 1 – No. 2: 10um
No. 2 – No. 3: 5um
No. 3 – No. 4: 2um
No. 4 – No. 5: 1um
Features:
Step master is a master gage used for the z-axis (vertical direction) calibration of optical instruments.
Each adjacent step is measured down to 0.01um by using a interferometer within +/-0.20um allowance.
Steel and ceramic types are available.
| Weight | 0.1400 kg |
|---|---|
| barcode | |
| Additional Information | Inch-Metric: Metric |
