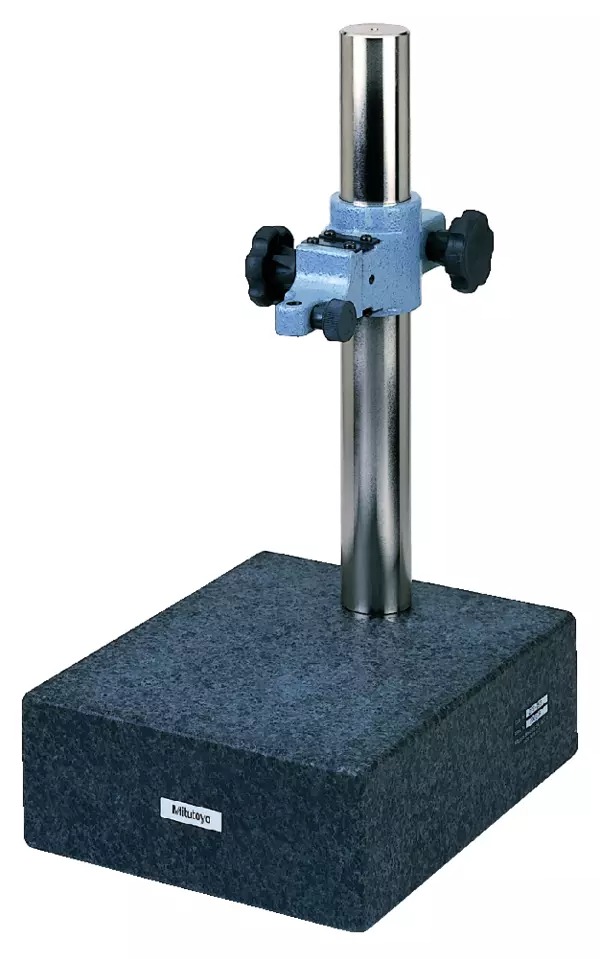

Mitutoyo GRANITE STAND 215-153-10

Product Code: 215-153-10

$1,159.90$1,054.45 Ex. GST

Product Code: 215-153-10 SKU 215-153-10 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

The Mitutoyo 215-153-10 Granite Comparator Stand has the following specifications:
Column travel: 260mm
Granite base size (W x D x H): 200 x 250 x 80mm
Stem hole: ?8mm, ?9.53mm
Remarks: With fine adjustment of 1mm range

Features:
Easy maintenance due to the non-rusting base.
The rigid granite base is free from burrs and pileups due to its fine-grain composition and less viscousness compared with casting iron. The flatness is always accurate and the workpiece is free from damage.

Additional information

Weight 16.0000 kg
barcode
Additional Information

Column Ø: 40 mm
Max. Measurement Height: 250 mm
Fine Adjustment: 1 mm
Stem Hole Ø: ø 3/8" / 9.53 mm, 8 mm with bush (standard accessory)
Table Flatness: 3.5 µm
Perpendicularity Table-Stem Hole: 0.2/100 mm/mm
Delivered: With stem bush 9.53 mm (3/8") to 8 mm
Mass: 16 kg

Brand

Mitutoyo
