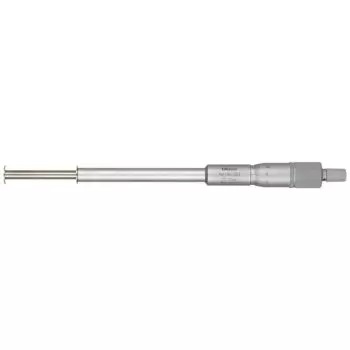

Mitutoyo GROOVE MICROMETER 146-223

Description

146-223 Groove Micrometer – Non-Rotating Spindle Type Type: 25-50mm

The Mitutoyo 146-223 Groove Micrometer has the following specifications:

Range Outside: 25-50mm
Range Inside: 26.5-51.5mm
Graduation: 0.01mm
Flange: 12.7mm
Mass(g): 175
Features:

Available in Metric and Inch models
Groove micrometer is available with a rotating and non-rotating spindle
Measuring discs are constructed precision ground hardened steel, precision in our Japanese factory
Ratchet mechanism provides an audible click to ensure measurement is performed with a constant force
Hardened measuring discs resist wear for better accuracy over time
Micrometer is precision balanced for easier handling and better readability
Satin chrome finish on the sleeve and laser etched measurements on sleeve and thimble for easier reading
Supplied in a plastic, fitted case
The Mitutoyo 146-223 groove micrometer with non-rotating spindle has a flanged spindle and measuring discs constructed of hardened steel to precisely measure width, depth and location of grooves, inside/outside bores and tubes. The Mitutoyo groove micrometer’s two-direction ratchet stop provides a constant measuring force on the spindle to ensure accurate, repeatable measurements of groove depths and widths. The sleeve and spindle contain measurements for both inside and outside diameters laser etched for precise, easy reading.

Technical Data:

Technology: Mechanical
Ratchet/Thimble: Ratchet Stop
Measuring Force: 0.7-1.2N
