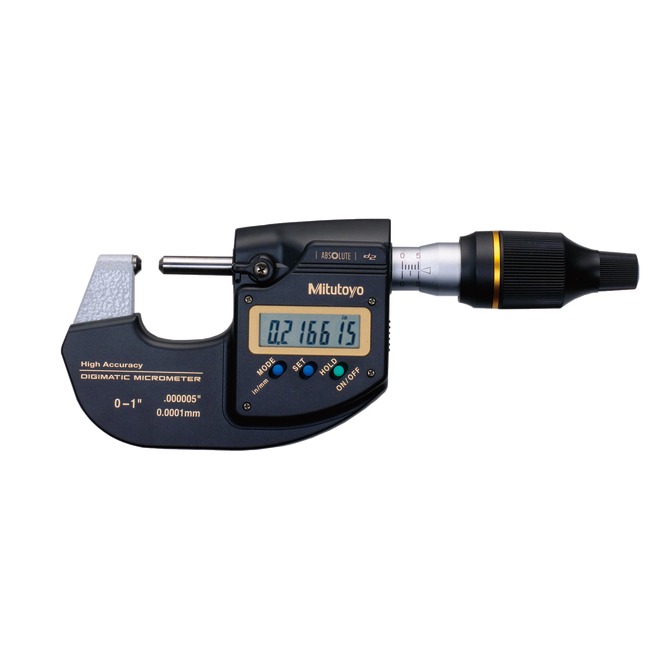

Mitutoyo H/A DIGIMATIC MICROMETER 293-130-10

Description

The Mitutoyo 293-130-10 MDH Electronic Micrometer has the following specifications:
Range: 0-1″/25.4mm
Resolution: .000005″/.00002″/0.0001mm/0.0005mm (switchable)
Accuracy: +/- .00002″
Measuring Surface: 3.2mm Diameter
Mass: 400g (440g w/Heat shield)
The Mitutoyo MDH Digimatic ABSOLUTE digital micrometer provides fast and easy high-accuracy measurements on workpieces that require absolute precision. The 293-130-10 exceptional performance is achieved due to the MDH’s highly rigid frame, high performing constant-force ratchet mechanism and innovative thread cutting technology in the spindle.

Features:
Enabling .000005” / 0.1μm resolution measurement, this micrometer is ideal for customers who need to make highly accurate measurements with a hand-held tool
A highly rigid frame and high-performance constant-force mechanism* enable more stable measurements , while the clicks emitted when the work piece is being measured assure the operator that measurement is proceeding normally
Body heat transferred to the instrument is reduced by a (removable) heat shield, minimizing the error caused by thermal expansion of the frame when performing handheld measurements
The 293-130-10 ABS (absolute) rotary sensor also eliminates the need to perform origin setting every time the power is turned on, offering immediate measurement
With no possibility of over speed errors, the High-Accuracy Digimatic Micrometer also delivers a high level of reliability
Carbide tips help resist wear on the measuring faces for accurate measurements over an extended period of time
Built-in “Hold” function freezes the displayed value, enabling the micrometer to be removed from a workpiece for better viewing when the readout is not easily visible
Functions include Preset, Zero-Setting (INC measurement system), Hold, Resolution Switching, Function Lock, ON/OFF, Auto Power Off, Measurement Data Output, Error Alarm
