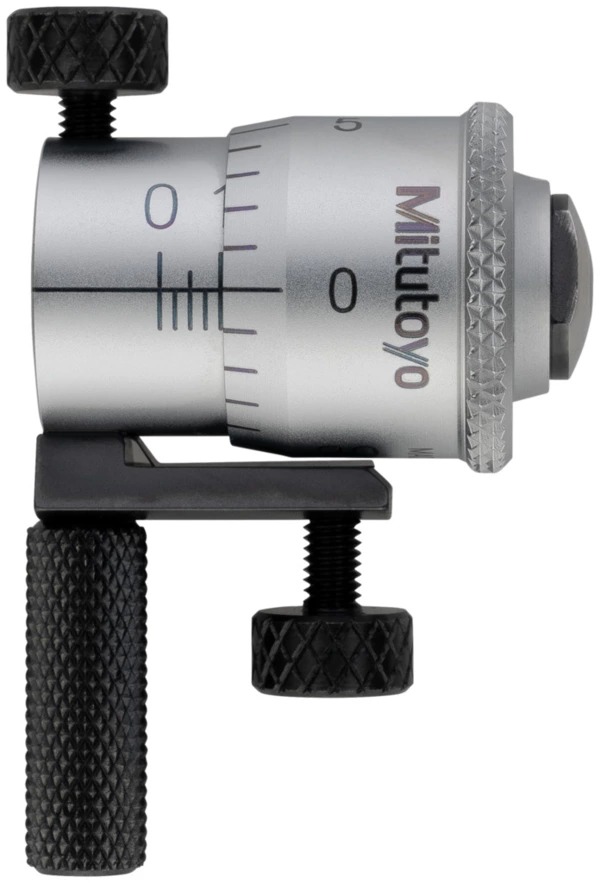

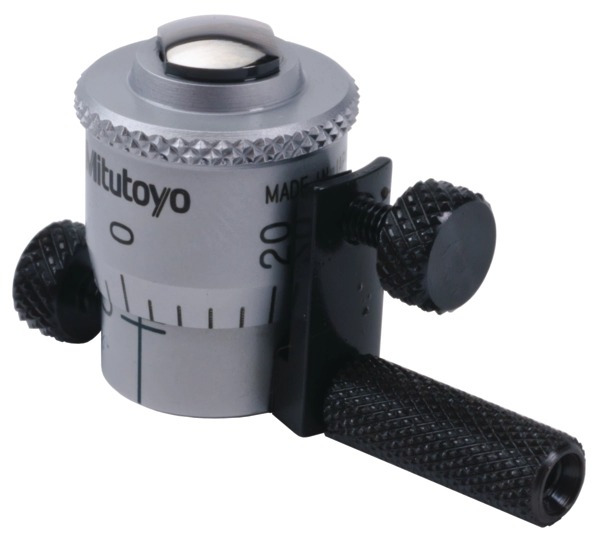

Mitutoyo Head 141-002

Product Code: 141-002

$91.67$83.34 Ex. GST

Product Code: 141-002 SKU 141-002 Categories Head, MEASUREMENT

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

The hardened face inside micrometer head comes with 1 to 1.25″ range. It is used with interchangeable rods marked with its measuring range and the sizes can be adjusted with spacing collars. The micrometer head is satin-chrome finished.

Additional information

Weight	0.0200 kg
barcode
Additional Information	Range: 1 to 1.25" Head Adjustment Range: 0.25" Mass: 20 g Measuring Surfaces: Hardened steel Measuring Spindle: Spindle pitch 0.5 mm with spindle lock Graduation: 0.01 mm Digital/Analog: Analog Accuracy: ±(6 + L/50) µm, L = Maximum measuring length (mm), ±[0.0003 + 0.00005 × (R/2)]" Inch-Metric: Inch
