Mitutoyo Holtest 1.6-2″ 368-269

Product Code: 368-269

$827.87$752.61 Ex. GST

Product Code: 368-269 SKU 368-269 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

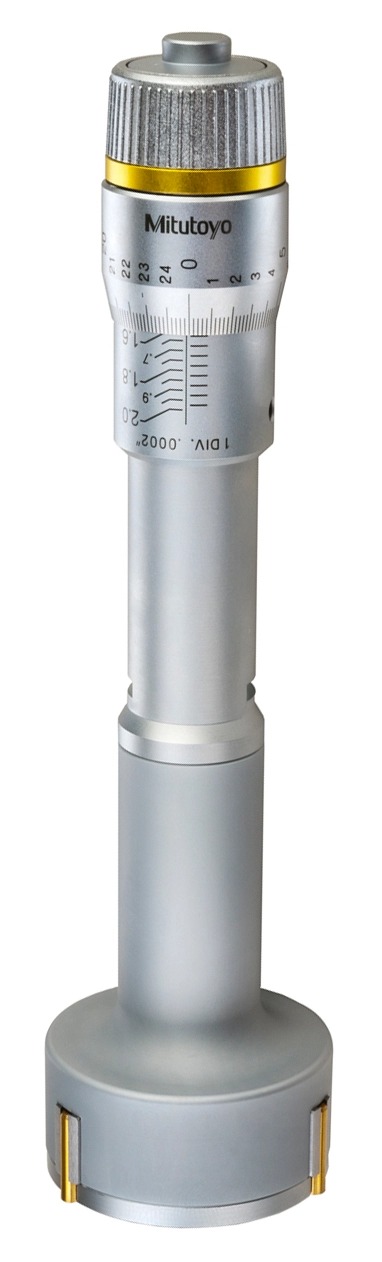

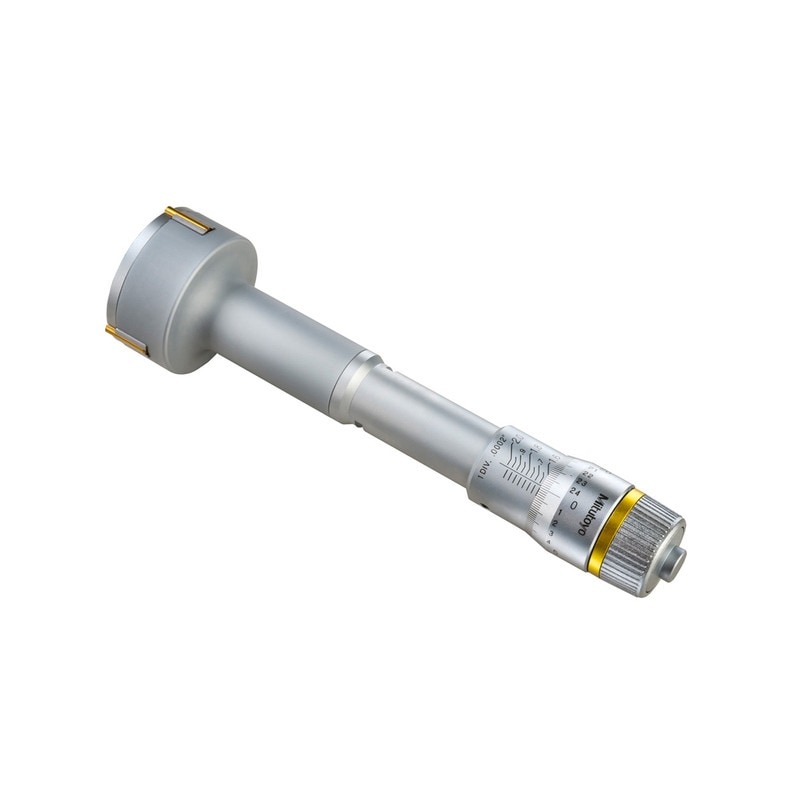

Mitutoyo 368-269 Holtest Internal Micrometer has a measuring range of 1.6-2.0″ with Titanium coated Contact Point. These Holtests are versatile, self-centering three-point internal micrometers for the accurate and efficient direct-measurement of internal diameters. Three anvils, even spaced at 120 degrees apart, contact the internal wall surfaces and find true alignment with the axis of the bore for accurate ID measurement

Additional information

Weight 0.3300 kg
barcode
Additional Information

Digital/Analog: Analog
Inch-Metric: Inch
Range: 1.6 – 2"
Graduation: ≤ 0.5": 0.0001", >0.5": 0.0002"
Scale: Thimble and sleeve satin chrome finish, Up to 0.5": Ø 17 mm, Over 0.5": Ø 23 mm
Measuring Spindle: Spindle pitch 0.635 mm
Measuring Face: Titanium coated hardened steel
Taper: Tungsten carbide
Measuring Method: 3-point
Delivered: Including box, spanner, hex wrench, certificate of inspection, without setting ring
Mass: 330 g

Brand

Mitutoyo
