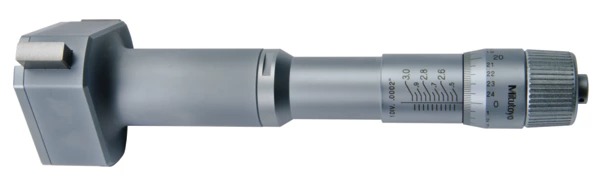

Mitutoyo Holtest 2.5-3″ 368-871

Product Code: 368-871

$799.00$726.36 Ex. GST

Product Code: 368-871 SKU 368-871 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Mitutoyo 368-871 Three Point Internal Holtest II Micrometer is mechanical, versatile and self-centering. Provides accurate and efficient direct-measurement of internal diameters. Features three anvils, evenly spaced at 120 degrees apart that contact the internal wall surfaces and find true alignment with the axis of the bore for accurate inside diameter measurement. This model has Alloy Steel contact points with a 2.5-3″ Range and .00015″ Accuracy.

Additional information

Weight 0.4500 kg
barcode
Additional Information

Digital/Analog: Analog
Inch-Metric: Inch
Range: 2.5 – 3"
Graduation: ≤ 0.5": 0.0001", >0.5": 0.0002"
Scale: Thimble and sleeve satin chrome finish, Up to 12 mm: Ø 17 mm, Over 12 mm: Ø 23 mm
Measuring spindle: Spindle pitch 0.635 mm
Measuring face: Hardened steel
Taper: Hardened steel
Measuring method: 3-point
Delivered: Including box, spanner, hex wrench, certificate of inspection, without setting ring
Mass: 450 g

Brand

Mitutoyo
