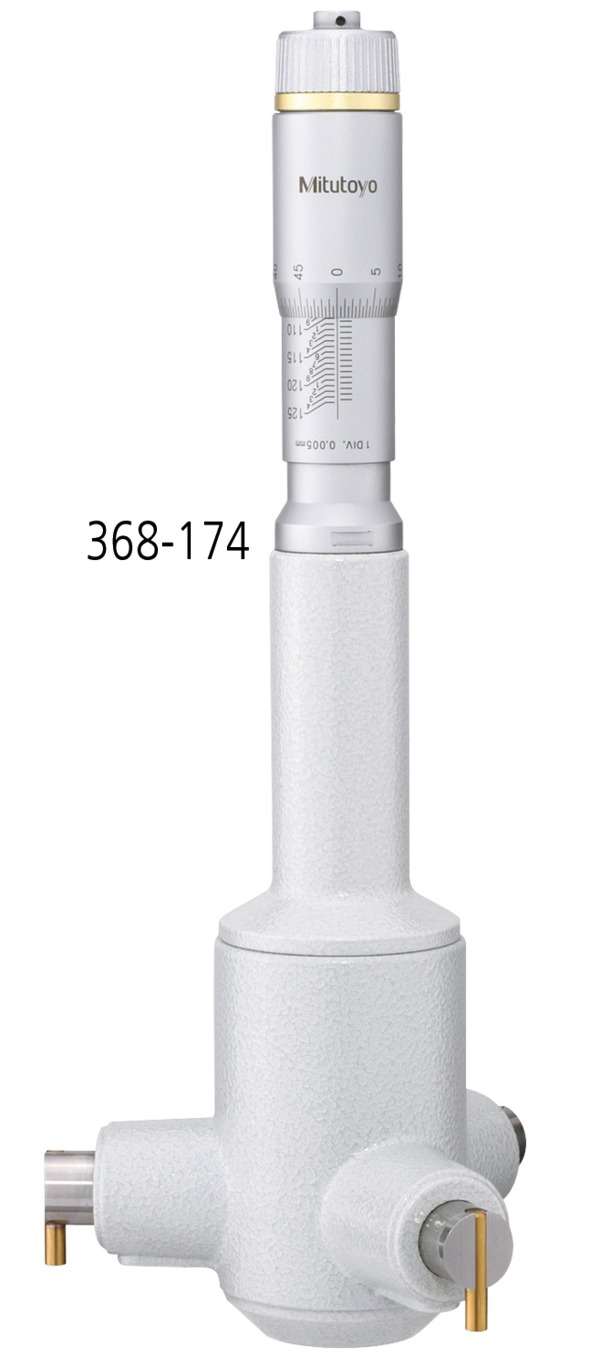

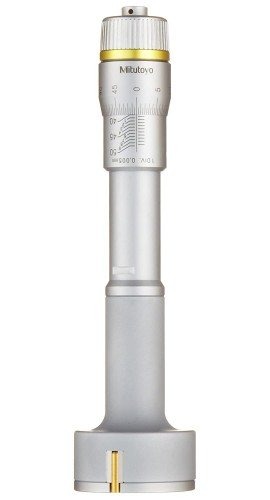

Mitutoyo Holtest 368-174

Product Code: 368-174

$1,346.97$1,224.52 Ex. GST

Product Code: 368-174 SKU 368-174 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Mitutoyo 368-174 Offers
Features

TiN-coated measuring contact points provide excellent durability and impact resistance
Measurement can be taken closer to the bottom of the blind bore
Can measure deep holes using an Extension rod
With Ratchet Stop for constant force
Setting Rings for zero point adjustment are optional

Additional information

Weight 1.0300 kg
barcode
Additional Information

Digital/Analog: Analog
Inch-Metric: Metric
Range: 100 – 125 mm
Graduation: 0.005 mm
Max. Permissible Error J MPE: ±5 µm
Scale: Thimble and sleeve satin chrome finish, Up to 12 mm: Ø 17 mm, Over 12 mm: Ø 23 mm
Measuring Spindle: Spindle pitch 0.5 mm
Measuring Face: Titanium coated hardened steel, taper: tungsten carbide
Measuring Method: 3-point
Delivered: Including box, spanner, hex wrench, certificate of inspection, without setting ring
Mass: 1030 g

Brand

Mitutoyo
