Mitutoyo Holtest C 368-926

Description

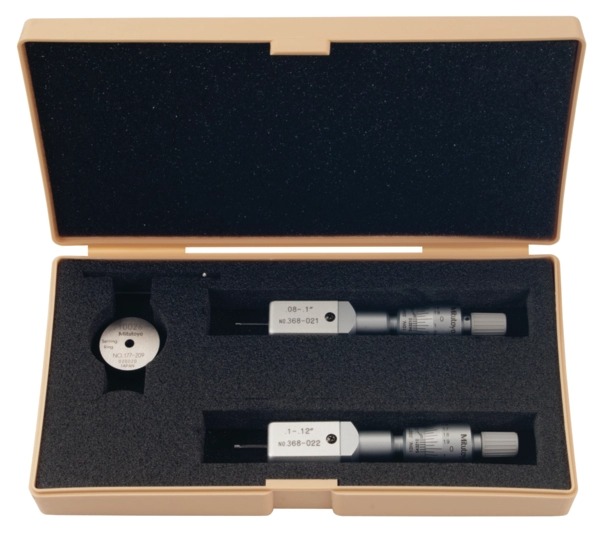

The Mitutoyo 368-926 Holtest two-point micrometer set has hardened steel points, a measurement range of 0.08 to 0.12”, and is precise to 0.0001”, with + or – 0.0001” of accuracy. Hardened steel measuring contact points offer hardness and durability, while contact point geometry allows the instrument to measure to the bottom of a blind hole. The ratchet stop offers constant force for repeatability. Includes inspection certificate ensuring that the exact micrometer purchased has met National Institute of Standards and Technology master standards. This gage set includes two complete display units, setting ring, and a fitted plastic case.

Bore gages measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gages are typically calibrated with a setting ring. Bore gages come in two types, one simple, and the other direct-measuring. Simple bore gages are used with a caliper to transfer the hole measurement, while the more complex gages take the measurement directly, and display the measurement through a vernier, dial, or digital display. Bore gages have a two- or three-point contact, which indicates how many points on the gage head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point systems are used to measure lobing, or triangular form error. Pistol-grip bore gages are used for fast, single-handed operation with good repeatability from one operator to another. Bore gages, regardless of type, can be used in some special applications, such as measuring threads, spline pitch diameters, and deep bores.
