Mitutoyo Holtest Set 100-200Mm 368-994

Description

The Mitutoyo 368-994 Holtest (Type II) Three-Point Internal Micrometer Set has the following specifications:

Range: 100-200mm
Graduations: .005mm
Accuracy: +/- .005mm
Measuring Contacts: 3-point
Measuring Depth: 161mm
Features:

Ratchet stop provides constant force which results in better repeatability
Contact points are made from hardened alloyed steel
Setting rings for calibration are optional
Optional extensions are available for deeper bore measurement
Bore measurement is close to being blind for sizes up to 100mm
Sizes up to 100mm are supplied in a fitted plastic case
Sizes over 100mm are supplied in a wooden case

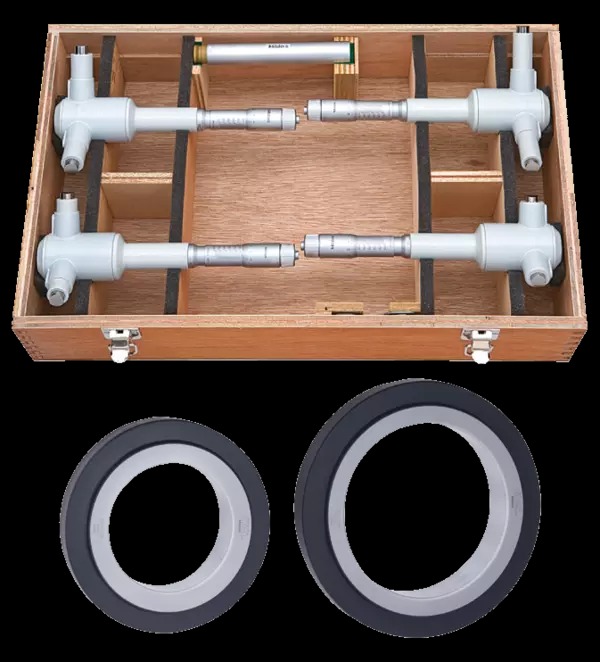

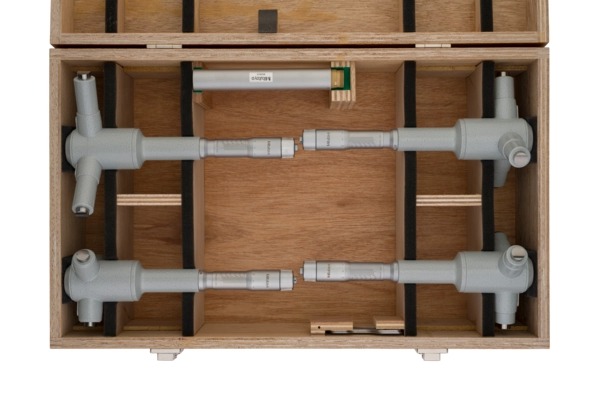

The Mitutoyo 368-994 Holtest (Type II) Three Point Internal Micrometer set includes the following:

Type II Individual Holtest: 100-125mm
Type II Individual Holtest: 125-150mm
Type II Individual Holtest: 150-175mm
Type II Individual Holtest: 175-200mm
125mm Setting Ring
175mm Setting Ring
Extension Rod
