Mitutoyo Id-F Digimatic Indicator 543-563E

Product Code: 543-563E

$1,286.93$1,169.94 Ex. GST

Product Code: 543-563E SKU 543-563E Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

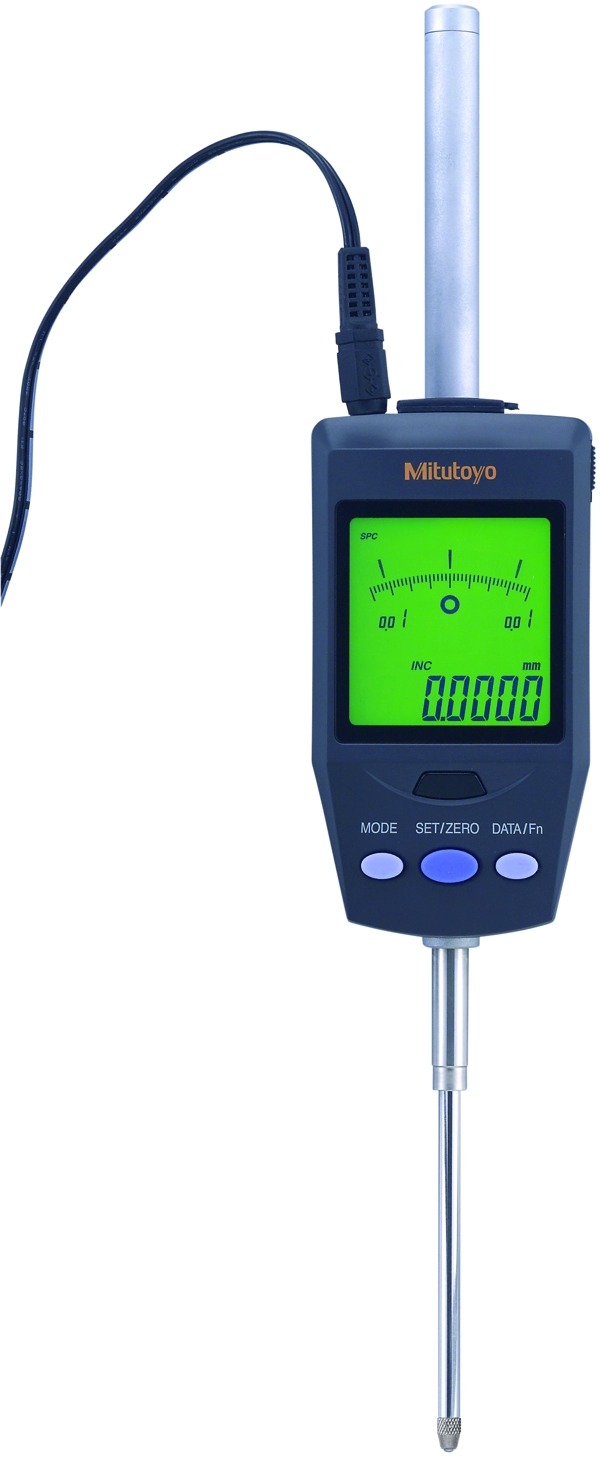

This is a superior multi-function indicator that gives you high accuracy and high resolution of 0.0005 mm.
The Digimatic Indicator ID-H offers you the following benefits:

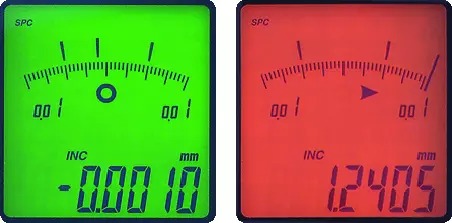

2-colour LCD backlight (green and red) provides you with visual GO/±NG
tolerance judgement and analogue bar-graph display.
You can display the maximum, minimum or range (runout value).

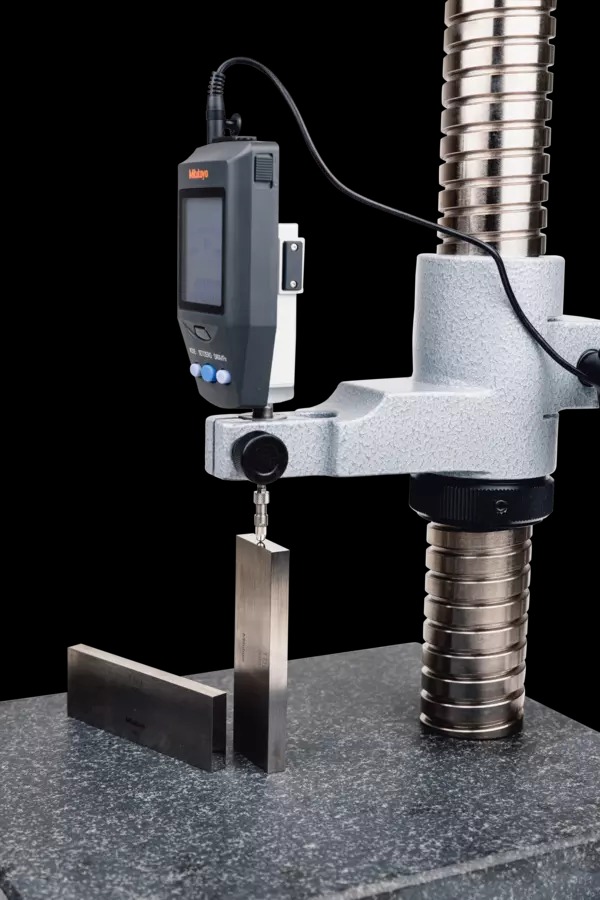

Lifting mechanism over 30 mm with cable release (optional).
You can carry out zero-setting and presetting with the optional remote
controller, without having to touch the indicator.
The remote control system can be implemented in advance with the built-in RS-232 interface and a PC.
External power supply via AC-Adapter.

Additional information

Weight 0.0000 kg
barcode
Additional Information

Brand: Mitutoyo
Range: 0-75 mm
Resolution: 0.0005 mm
Product: Indicators
Model: Plunger
Display: Digital
Unit: mm (Digital)
IP Rating: IP30
Data Output: Yes
MPN: 543-563E
