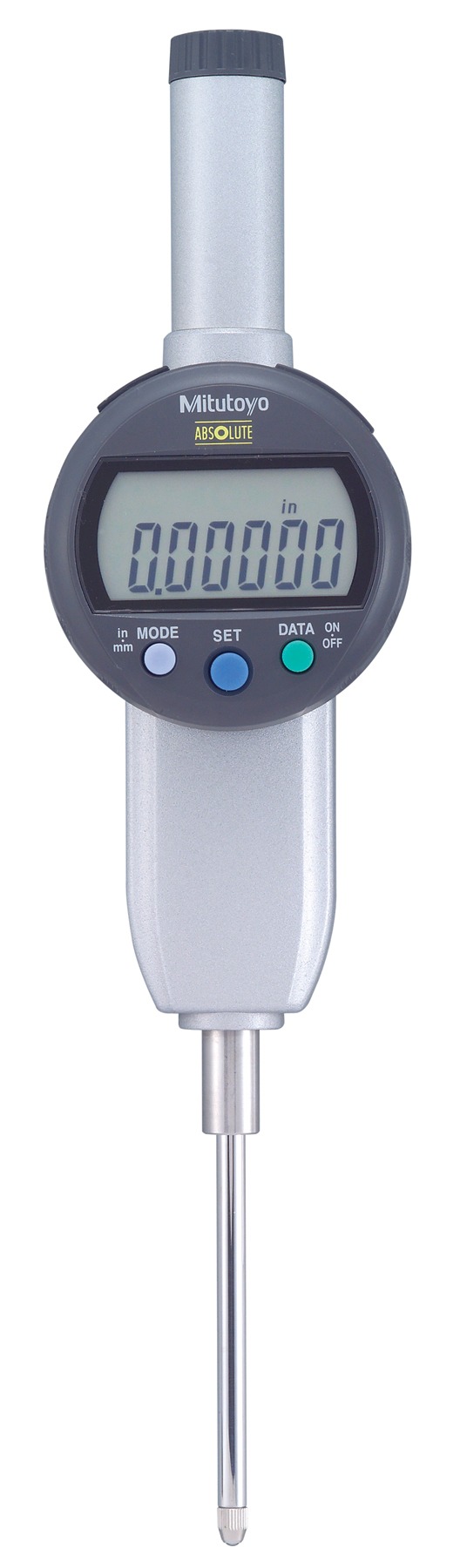

Mitutoyo Idc Digimatic Indicator 543-492B

Range: 2 inch
Digital Step: 0.00005"/0.0001"/0.005"/0.001 mm/0.01 mm
Remarks: ANSI/AGD type
Accuracy: 0.005 mm/0.0002"
Measuring Force: ≤ 2.3 N
Mass: 260 g
Accuracy: Refer to the list of specifications (excluding quantizing error)
Scale: Capacitance type, ABSOLUTE linear encoder
Max. Response Speed: Unlimited
Stem Ø: 8 mm
Contact Point: Carbide ball, thread M 2.5 x 0.45 mm
Alarm: Low voltage, counting value composition error, overflow error, tolerance limit setting error
Power Supply: SR-44 Battery
Battery Life: Approx. 7000 hours
Display: LCD character height 11 mm, rotatable 330°
Zero/ABS: Yes
GO/±NG Judgement: Yes
Digimatic Data Output: Yes
On/Off: Yes
Lock Function: Yes
Preset: Yes
Counting Direction Switchable: Yes
Calculation Function: Yes
Selectable Resolution: Yes
Inch-Metric: Inch/Metric
