Mitutoyo Inside Micrometer 141-214

Description

141-214 Mitutoyo Carbide Tipped Inside Micrometer: 2-8″

The Mitutoyo 141-214 Carbide Tipped Inside Micrometer has the following specifications:

Range: 2-8″
Travel of Micrometer Head: .5″
Accuracy: +/-{.00024+ (.00004xR/2)}” R=Maximum measuring length (inch) Fraction rounded up
Graduation: 0.01mm or .001″

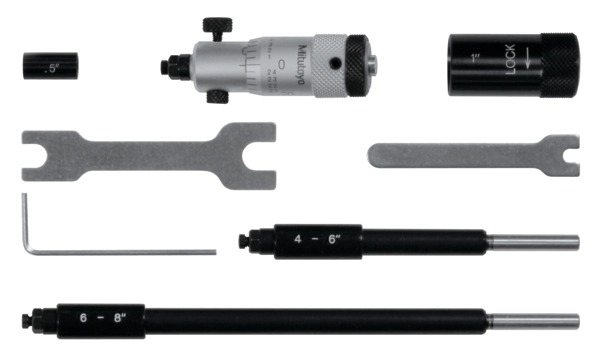

With 3 rods
Features:

With locking clamp.
Each interchangeable rod is marked with its measuring range.
The sizes of interchangeable rods can be adjusted with spacing collars.
Both micrometer head and furnished rods are satin-chrome finished throughout.
Supplied in fitted plastic case. Over 1000mm / 40″ supplied in wooden case.
