Mitutoyo Inside Micrometer A 141-101

Description

141-101 Mitutoyo Inside Micrometer: 25-50mm

The Mitutoyo 141-101 Inside Micrometer – Metric has the following specifications:

Range: 25-50mm
Travel of Micrometer Head: 7mm
Accuracy: +/-(6+L/50)?m L=Maximum measuring length (mm) Fraction rounded up
Graduation: 0.01mm or .001″

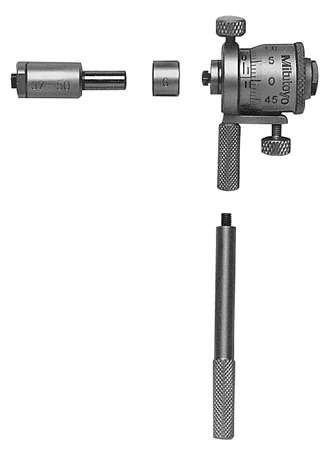

With 2 rods
Features:

With locking clamp.
Each interchangeable rod is marked with its measuring range.
The sizes of interchangeable rods can be adjusted with spacing collars.
Both micrometer head and furnished rods are satin-chrome finished throughout.

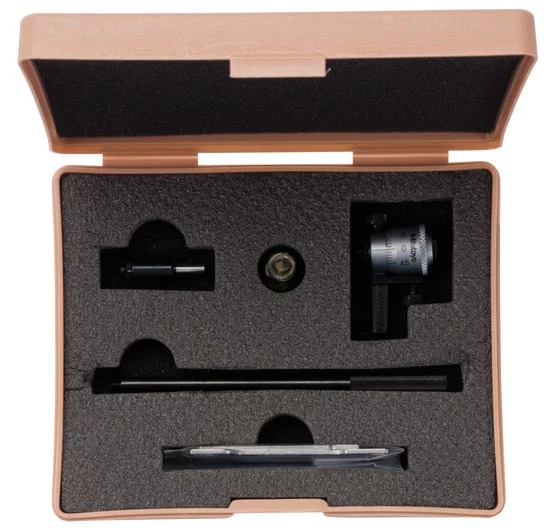

Supplied in fitted plastic case. Over 1000mm / 40″ supplied in wooden case.
