Mitutoyo Inside Micrometer B 133-147

Product Code: 133-147

$173.77$157.97 Ex. GST

Product Code: 133-147 SKU 133-147 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

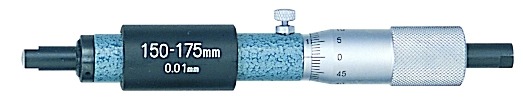

133-147 Mitutoyo Tubular Inside Micrometer: 150-175mm

The Mitutoyo 133-147 Tubular Inside Micrometer – Metric has the following specifications:

Range: 150-175mm
Accuracy: +/- 5?m
Graduation: 0.01mm
Features:

With locking clamp.
Zero point can be readjusted by rotating the micrometer head sleeve. A key wrench is supplied.
Clear, crisp graduations on the satinchrome finished micrometer head.
Carbide-tipped measuring faces.
Supplied in fitted plastic case. Over 200mm / 8″ supplied in wooden case.

Additional information

Weight 0.1700 kg
barcode
Additional Information

Digital/Analog: Analog
Inch-Metric: Metric
Range: 150 – 175 mm
Graduation: 0.01 mm
Max. Permissible Error (J MPE): ±5 µm
Scale: Thimble and sleeve satin chrome finish, Ø18 mm
Measuring Spindle: With spindle lock (except for 50-75 mm), spindle pitch 0.5 mm
Measuring Face: Carbide tipped
Measuring Method: 2-point
Delivered: Including box and spanner
Mass: 170 g

Brand

Mitutoyo
