Mitutoyo Inside Micrometer B 133-152

Product Code: 133-152

$197.02$179.11 Ex. GST

Product Code: 133-152 SKU 133-152 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

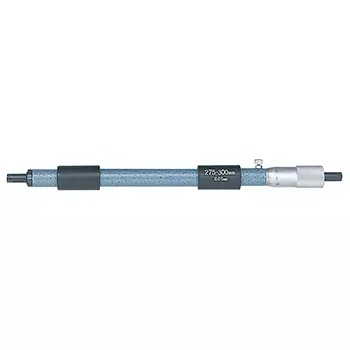

133-152 Mitutoyo Tubular Inside Micrometer: 275-300mm

The Mitutoyo 133-152 Tubular Inside Micrometer – Metric has the following specifications:

Range: 275-300mm
Accuracy: +/- 3?m
Graduation: 0.01mm
Features:

With locking clamp.
Zero point can be readjusted by rotating the micrometer head sleeve. A key wrench is supplied.
Clear, crisp graduations on the satinchrome finished micrometer head.
Carbide-tipped measuring faces.
Supplied in fitted plastic case. Over 200mm / 8″ supplied in wooden case.

Additional information

Weight 0.2450 kg
barcode
Additional Information

Digital/Analog: Analog
Inch-Metric: Metric
Range: 275 – 300 mm
Graduation: 0.01 mm
Max. Permissible Error (J MPE): ±6 µm
Scale: Thimble and sleeve satin chrome finish, Ø18 mm
Measuring Spindle: With spindle lock (except for 50-75 mm), spindle pitch 0.5 mm
Measuring Face: Carbide tipped
Measuring Method: 2-point
Delivered: Including box and spanner
Mass: 245 g

Brand

Mitutoyo
