Mitutoyo Inside Micrometer B 133-226

Product Code: 133-226

$168.76$153.42 Ex. GST

Product Code: 133-226 SKU 133-226 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

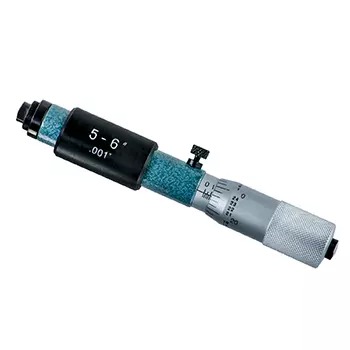

133-226 Mitutoyo Tubular Inside Micrometer: 5-6″

The Mitutoyo 133-226 Tubular Inside Micrometer – Inch has the following specifications:

Range: 5-6″
Accuracy: +/-.00025″
Graduation: .001″
Features:

With locking clamp.
Zero point can be readjusted by rotating the micrometer head sleeve. A key wrench is supplied.
Clear, crisp graduations on the satin chrome finished micrometer head.
Carbide-tipped measuring faces.
Supplied in fitted plastic case. Over 200mm / 8″ supplied in wooden case.

Additional information

Weight 0.1600 kg
barcode
Additional Information

Digital/Analog: Analog
Inch-Metric: Inch
Range: 5 – 6 "
Graduation: 0.001"
Max. Permissible Error J MPE: ±0.00025"
Scale: Thimble and sleeve satin chrome finish, Ø18 mm
Measuring Spindle: With spindle lock (except 50-75 mm), spindle pitch 0.5 mm
Measuring Face: Carbide tipped
Measuring Method: 2-point
Delivered: Including box and spanner
Mass: 160 g

Brand

Mitutoyo
